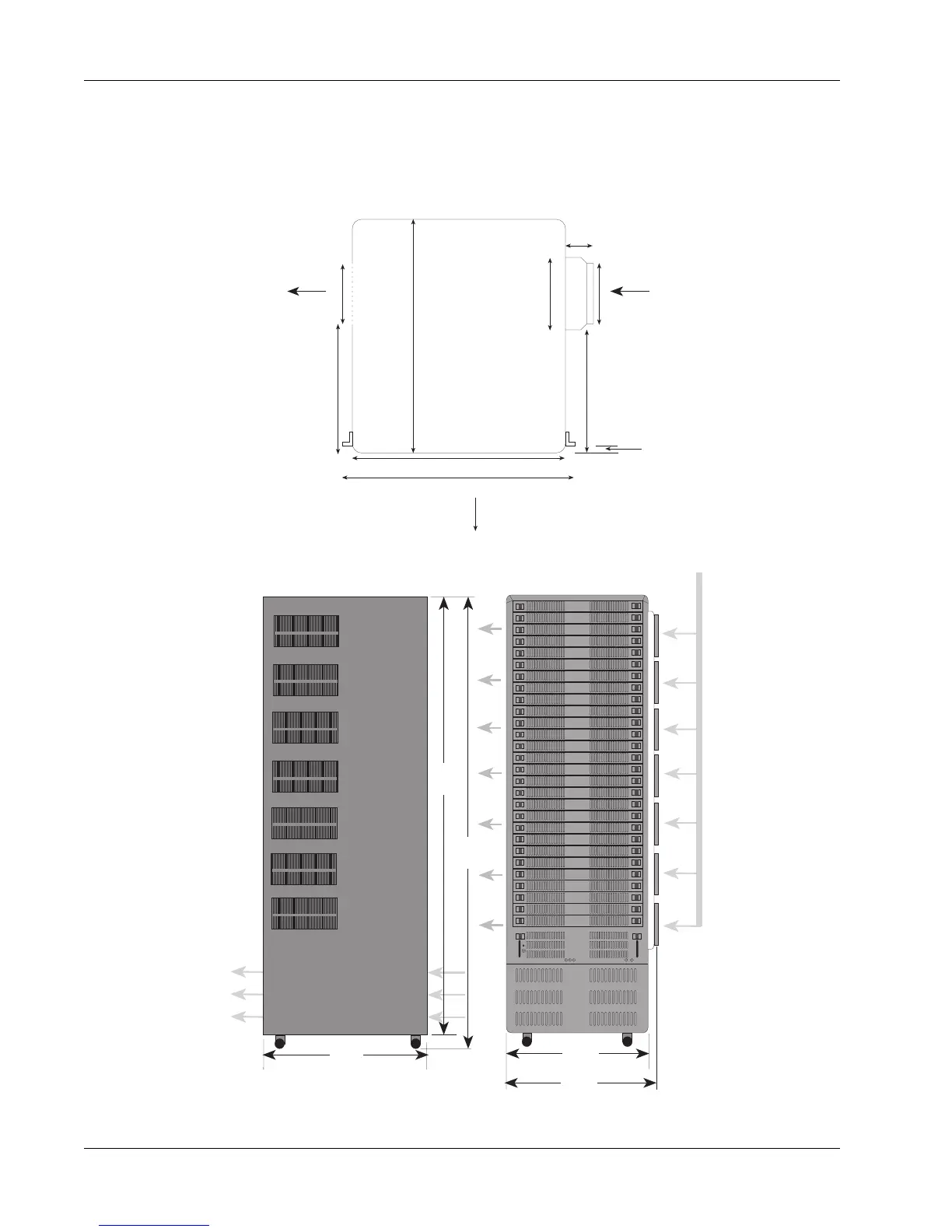

The illustration below shows the dimensions and air flow for the Euphonix
Audio Tower. The fans can be mounted on either side of the Tower enclosure.
For twin Tower systems you should make sure that the exhaust of the first
Tower is not blowing into the intake vents of the second.
Audio Tower
Dimensions
Audio Tower Dimensions
Appendix 8: Audio Tower Dimensions
Back
Audio Tower
View from
Above
Air Flow In
Air Flow
Through
Side Vents
10.2”
258mm
2.2”
56mm
5.0”
126mm
19.0”
483mm
5.9”
150mm
Air Flow
Through Module
Front Vents
17.4” / 442mm
4.8"
122mm
19.0” / 483mm with Optional Rack Mount Flanges
0.8”
20mm
10.6”
270mm
53.00”
(1346mm)
(with casters)
50.70”
(1288mm)
29U
Front View
Left Side View
19.00"
(483mm)
17.40"
(442mm)
20.00"
(including fans)
Air Flow
Power Supply
Tunnel Exhaust
