Euphonix CS3000 - Model; Cs3000-2-40; Cs3000-3-72; Cs3000-4-104

Euphonix CS3000/2000 Operation Manual A - 9
DSC
DSC
DSC
57.4"
1455mm
81.3"
2065mm
105.3"
2674mm
34.8"
883mm
Model #

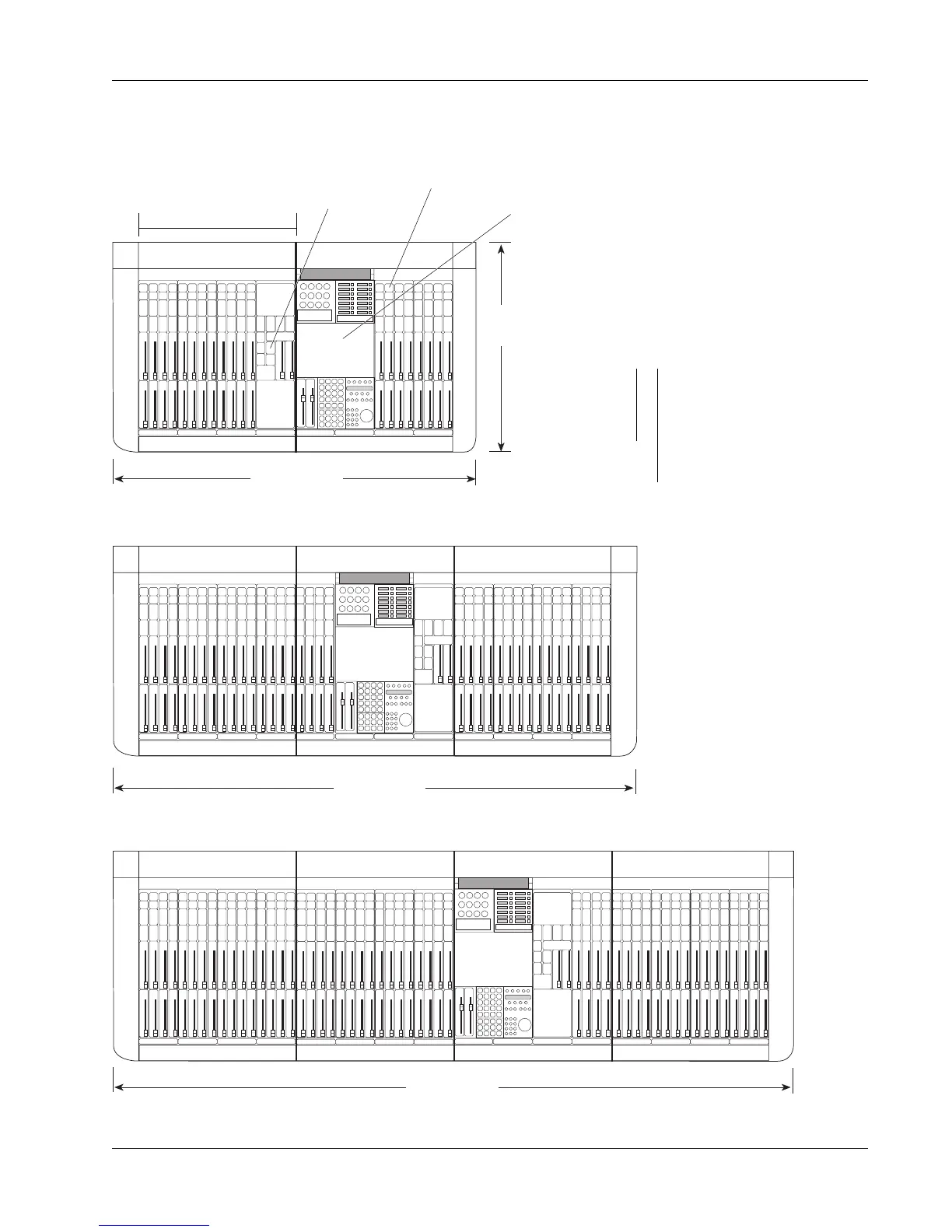

The diagram below shows two-, three-, and four-section CS3000 systems. The
Master controller may be placed on either side of the DSC.
CS3000-3-72
CS3000-4-104
Model #s
CS3000 Mix Controller Configurations
Digital Studio Controller (DSC)
I/O Controller
(4 channel strips)
Master Controller
Appendix 7: CS3000 Mix Controller Configurations
CS3000 Frame Section
CS3000-2-40
Number of
faders fitted
Number of 4-
module-wide
frame sections
