Euphonix CS3000 - Stereo Dynamics Insert

Section 9: Dynamics
9 - 22 Euphonix CS3000/2000 Operation Manual
PWR
LF
PWR
STEREO 1 BUS
L R
M1
M2
BAL
4 Band EQ
4 Band EQ
Stereo Links
EQ2
EQ1
Stereo Dynamics Insert
PWR
LF
PWR
STEREO 1 BUS
L R
M1
M2
BAL
Stereo Links

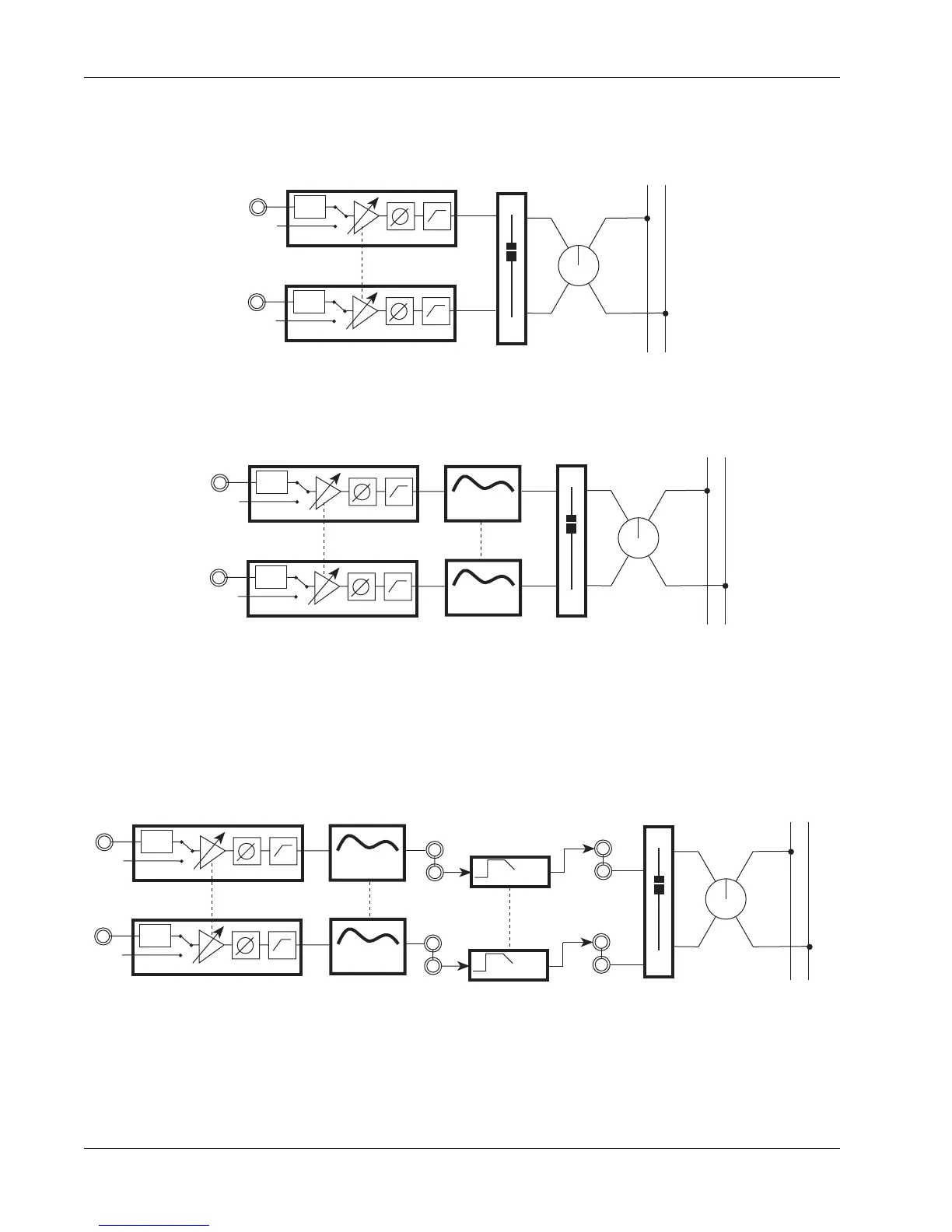

If two dynamics are available then they can be configured as one per fader
(upper and lower) or a single stereo dynamics unit on either fader. Set up a
stereo signal path:
Now put a stereo EQ on this path by sourcing EQ1 from M1 and EQ2 from M2.
The EQs must be linked using the [*ST] key:
To insert a stereo pair of dynamics that have been wired between OUT1/L1
and OUT2/L2, source OUT1 from M1 and OUT2 from M2. This sends the EQ'ed
M1 and M2 signal out to the dynamics inputs (Outs are post-EQ and pre-fader).
Now source the fader from L1 and L2 rather than M1 and M2. The fader will
now pick up the output of the dynamics.
LF
BAL
STEREO 1 BUS
L R
PWR
M2
4 Band EQ
EQ2
DYN
OUT2
L2
DYN 2
PWR
M1
4 Band EQ
Stereo Links
EQ1
DYN
OUT1
L1
DYN 1
Dynamics inserted post-EQ
