TX120 S3
Upgrade and Maintenance Manual
227
Expansion cards and backu
p units
Inserting the SFP+ transceiver modu
le

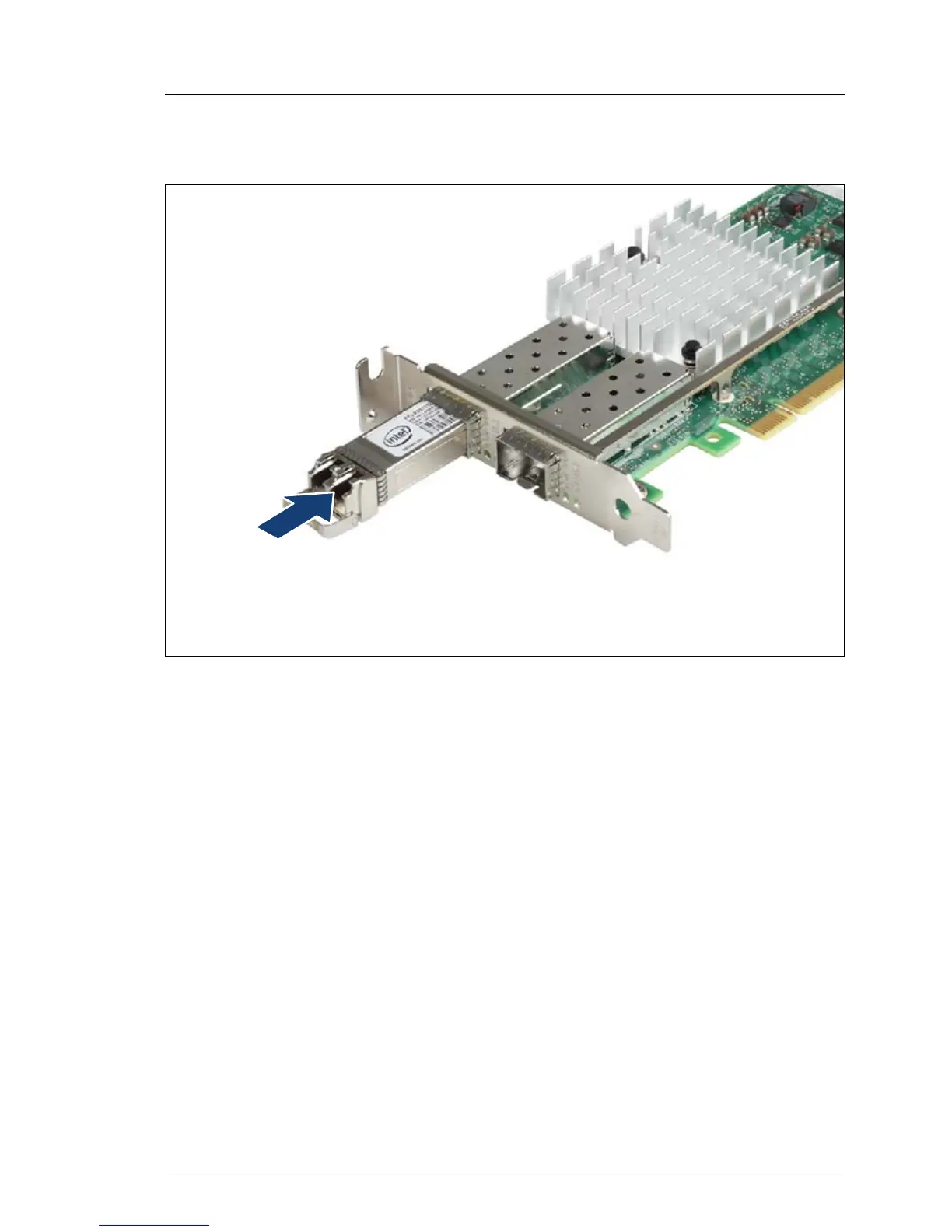

Figure 121: Inser
ting the SFP+
transceiver mo
dule
Ê
Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I
If only one slot is
equipped with
a SFP+ transceiver module,
use the
primary connector as shown.
226
228
