228 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units

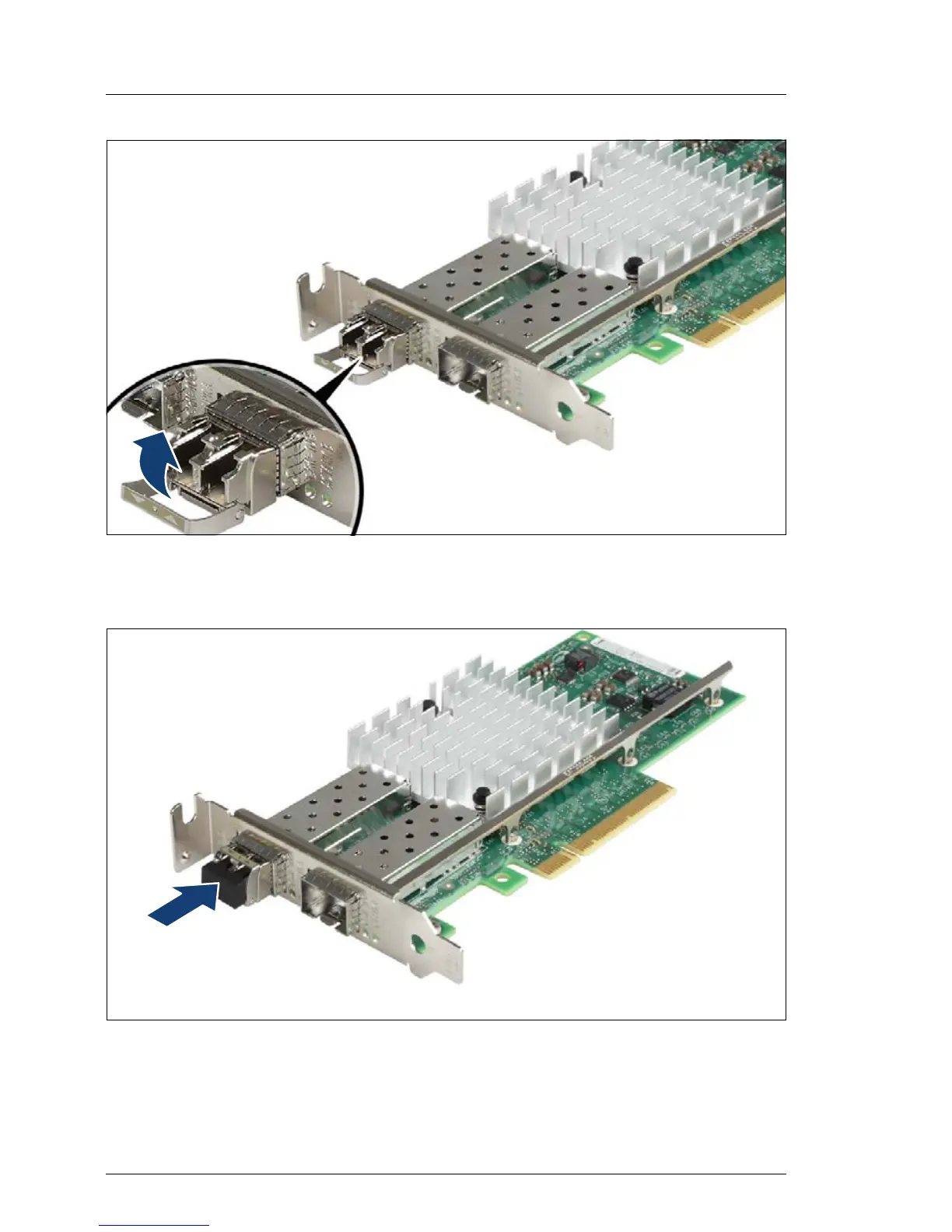

Figure 122: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 123: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
