TX120 S3 Upgrade and Maintenance Manual 303
Front panel and LAN connecto
r

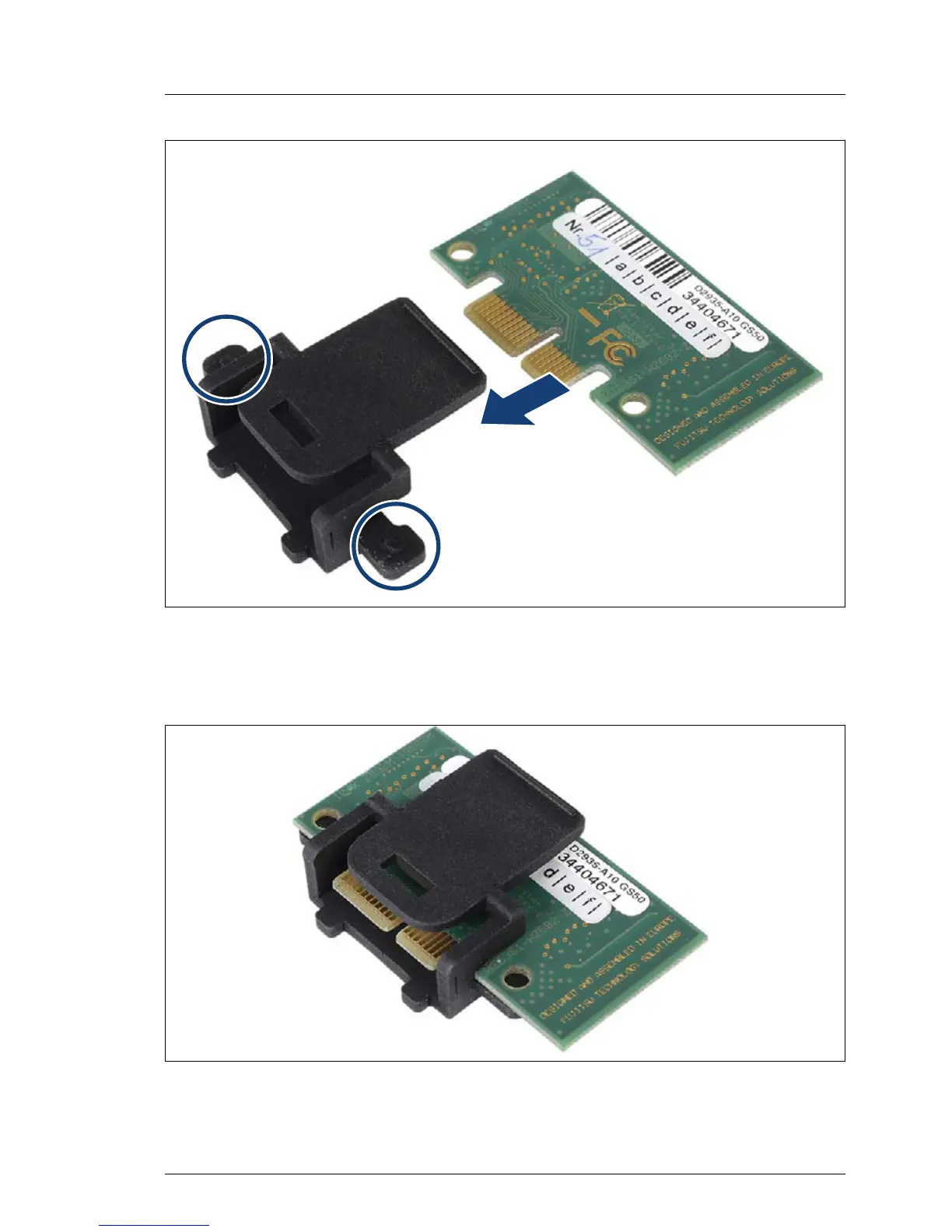

Figure 176: Assembling the front LAN board (A)
Ê Insert and push the front LAN board into the front LAN holder
(A3C40126757) until the two locking pins in the holder snap in place.
Figure 177: Assembling the front LAN board (B)
Ê Assembled front LAN board in front LAN holder
