304 Upgrade and Maintenance Manual TX120 S3
Front panel and LAN connector

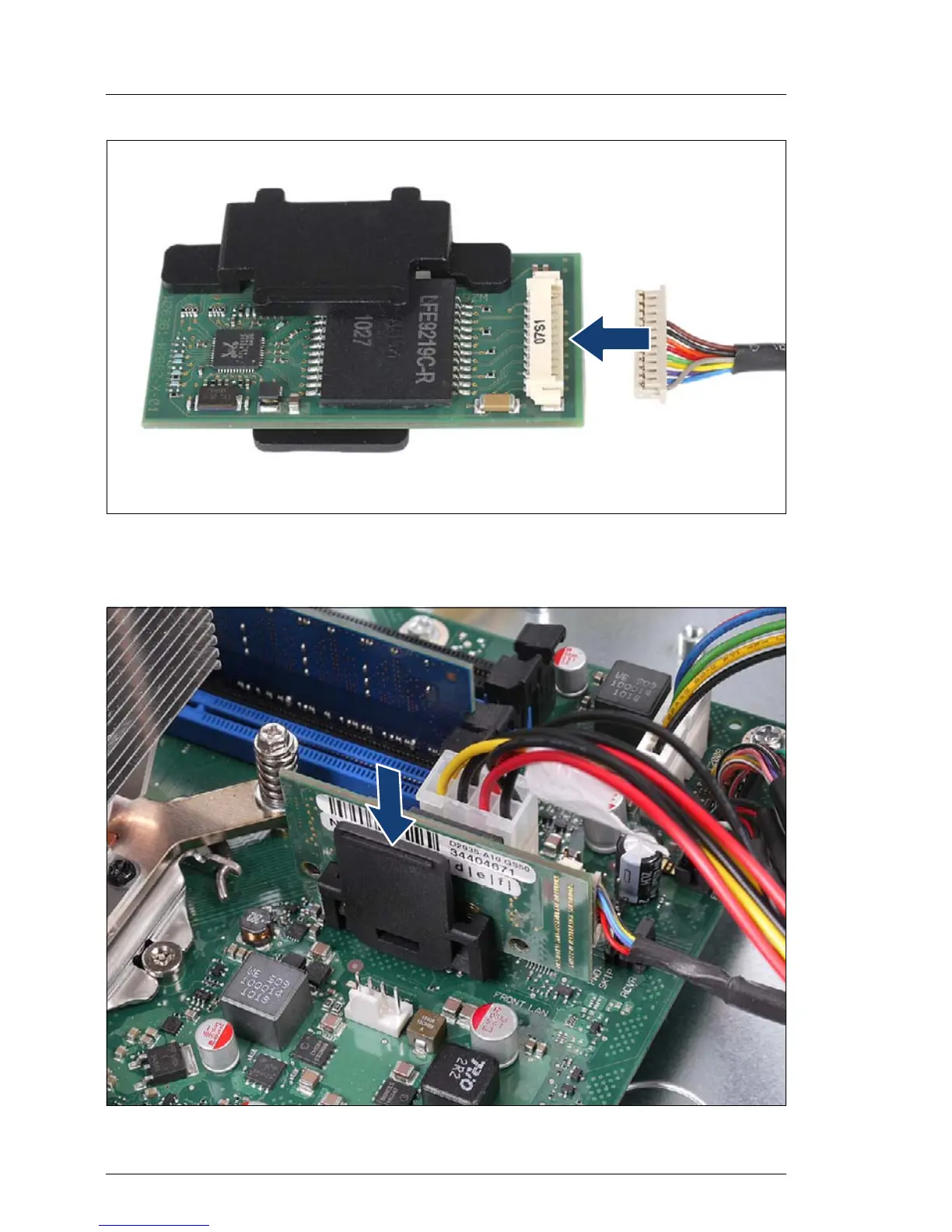

Figure 178: Connecting the front LAN cable to the front LAN board
Ê Connect the front LAN cable to the front LAN board.
Figure 179: Connecting the front LAN board to the system board
