TX120 S3 Upgrade and Maintenance Manual 305
Front panel and LAN connecto
r
Ê Connect the front LAN board to system board connector FRONT LAN (2).
I Ensure that the front LAN board holder snaps in place.
Ê Open the front cage as described in section "Opening the front cage" on
page 66

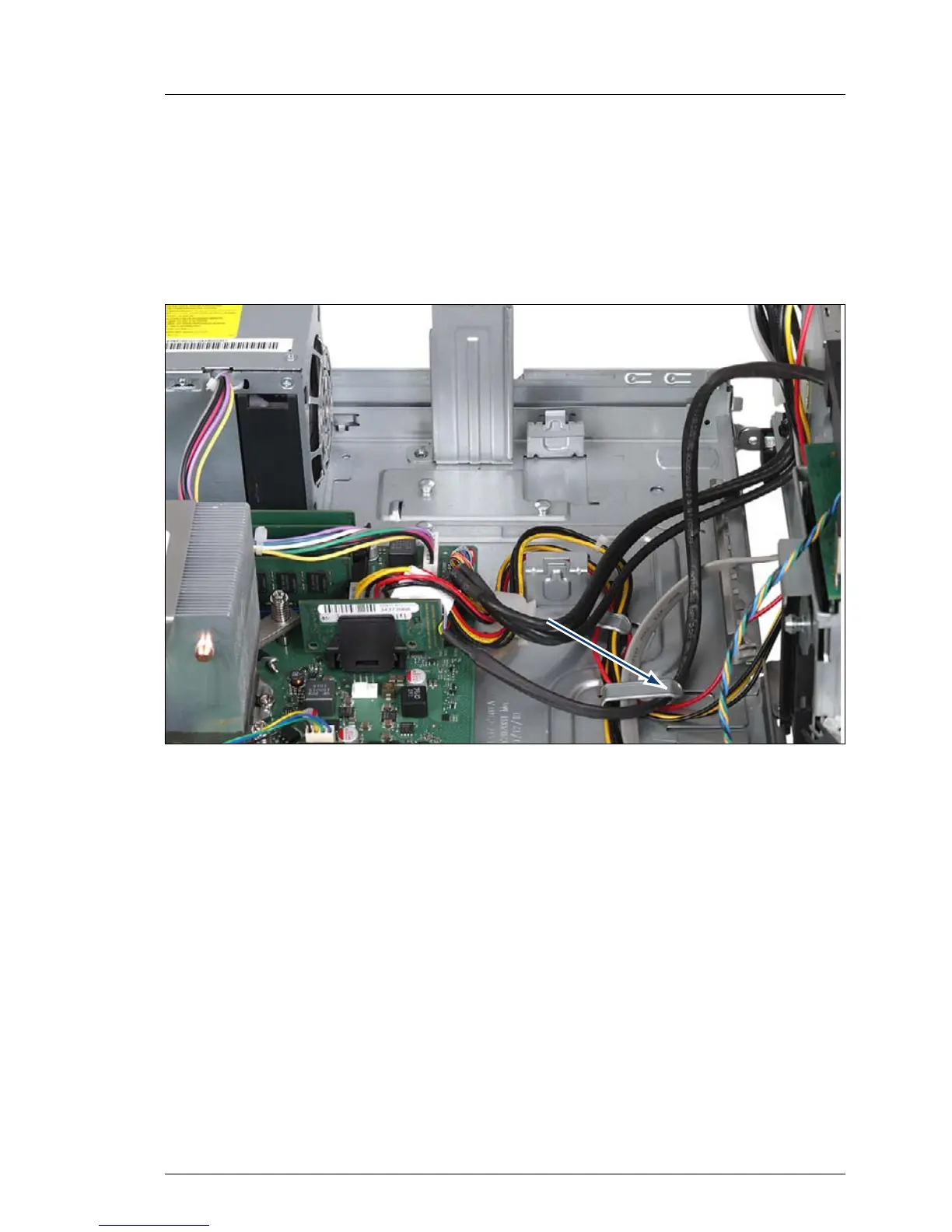

Figure 180: Connecting front panel cables (B)
Ê Run the front LAN cable through the middle cable bracket as shown (see
arrow)
