370 Upgrade and Maintenance Manual TX120 S3
Cables
3.5-inch HDD configuration

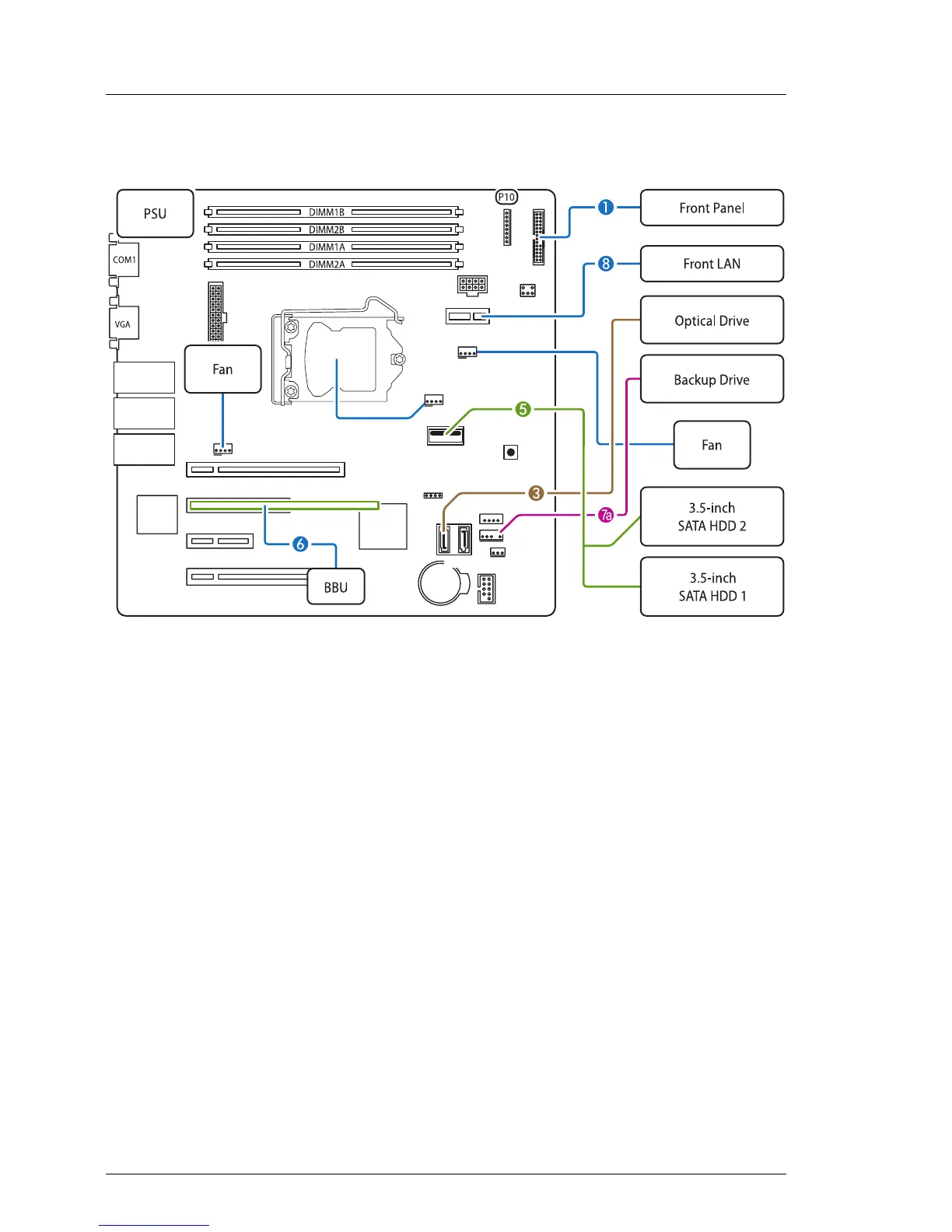

Figure 225: Data cabling - 3.5-inch HDD model
Slot 3 PCIe x4
Slot 1 PCI 32 Bit / 33 MHz
SATA5
SATA POWER
POWER1
HDD ACTIVITY
Slot 2 PCIe x1
Jumper
SATA MLC1
USB1 DAT
Mgmt. LAN
USB 9/10
Shared LAN
USB 7/8
Standard LAN
USB 5/6
Slot 4 PCIe x16
USB1AUX
FRONT LAN
UFM
FAN2 SYS
PC2009
FAN1 SYS
FRONTPANEL
FAN1 CPU
INTRUSION
SATA6
SAS Ctrl. 8-port
Indicate CSS
