Fujitsu PRIMERGY TX2540 M1

118 Upgrade and Maintenance Manual TX2540 M1
Power supply units

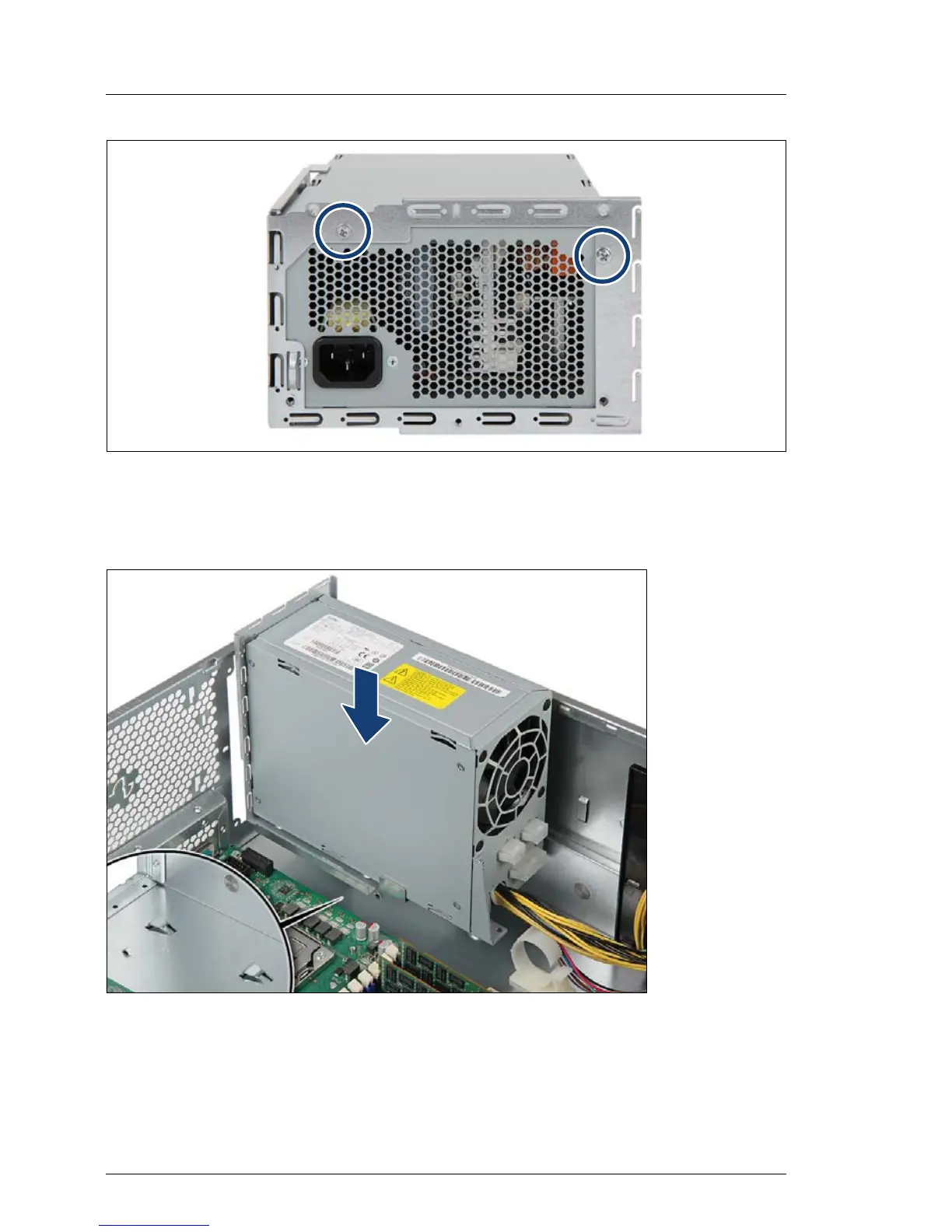

Figure 43: Installing the installation frame (B)
Ê Secure the installation frame to the power supply unit with two screws (see
circles).
Figure 44: Installing PSU in the chassis (A)
Ê Lower the power supply unit into the chassis so that the two hooks on the
server floor (see close-up) rest in the recesses in the installation frame.
