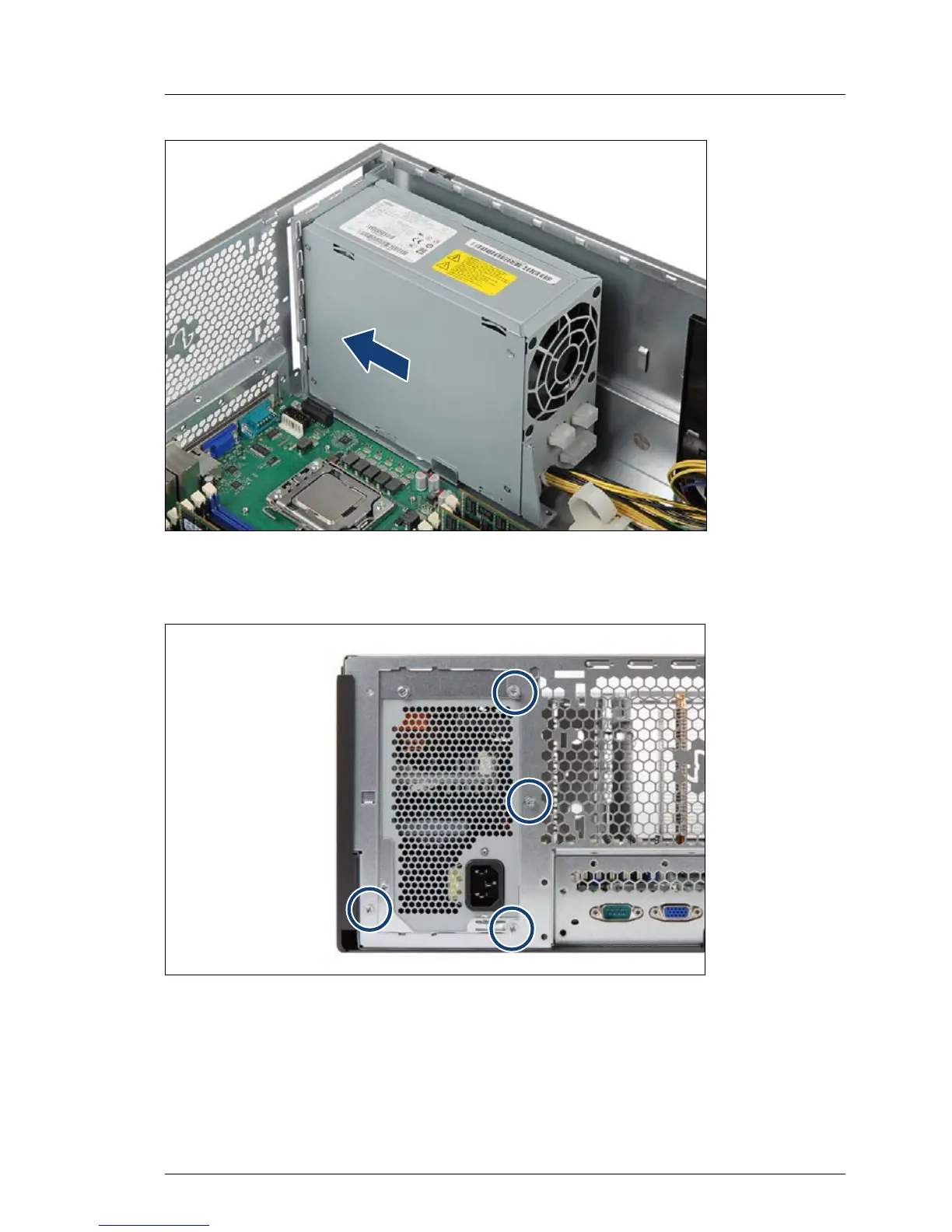

Figure 45: Installing PSU in the chassis (B)
Ê Slide the power supply unit towards the server rear as far as it will go.
Figure 46: Installing PSU in the chassis (C)
Ê Secure the power supply unit to the chassis with four screws (see circles).
Ê Connect the power cables see section "Cabling plans" on page 395.
Ê Run the power cable through the cable clamp (see figure 37).
