Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 199
Hard disk drives / solid state drives
Example cabling 24x 2.5-inch HDDs with SAS expander board and one
SAS controller

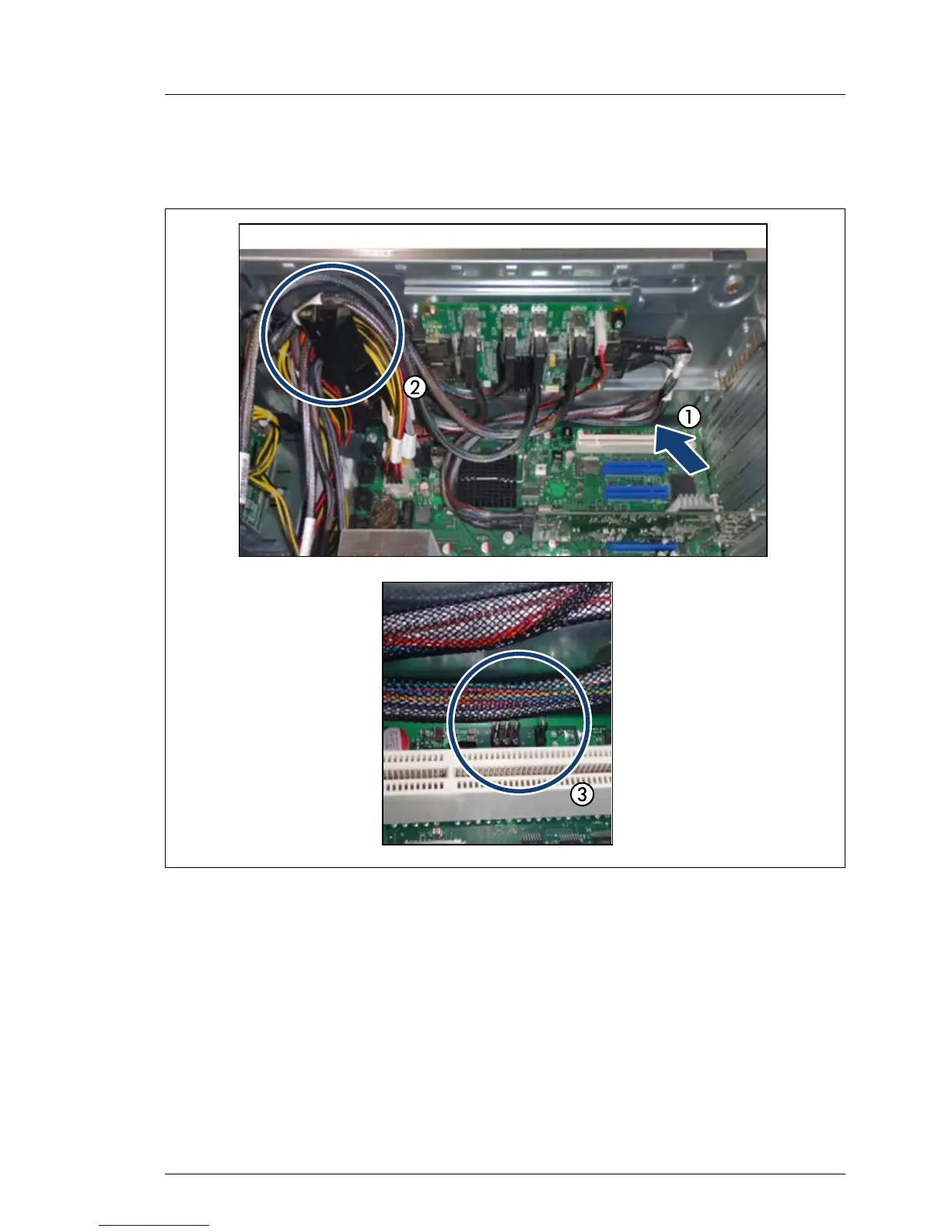

Figure 127: Example cabling 24x 2.5-inch HDDs
V CAUTION!
Ê Press the SAS cables to the chassis to get them away from the PCI
slots (1).
Ê Make sure that the power supply cables are positioned under the
SAS cables (2).
Ê Take care that the SAS cables don’t damage pins (3).
