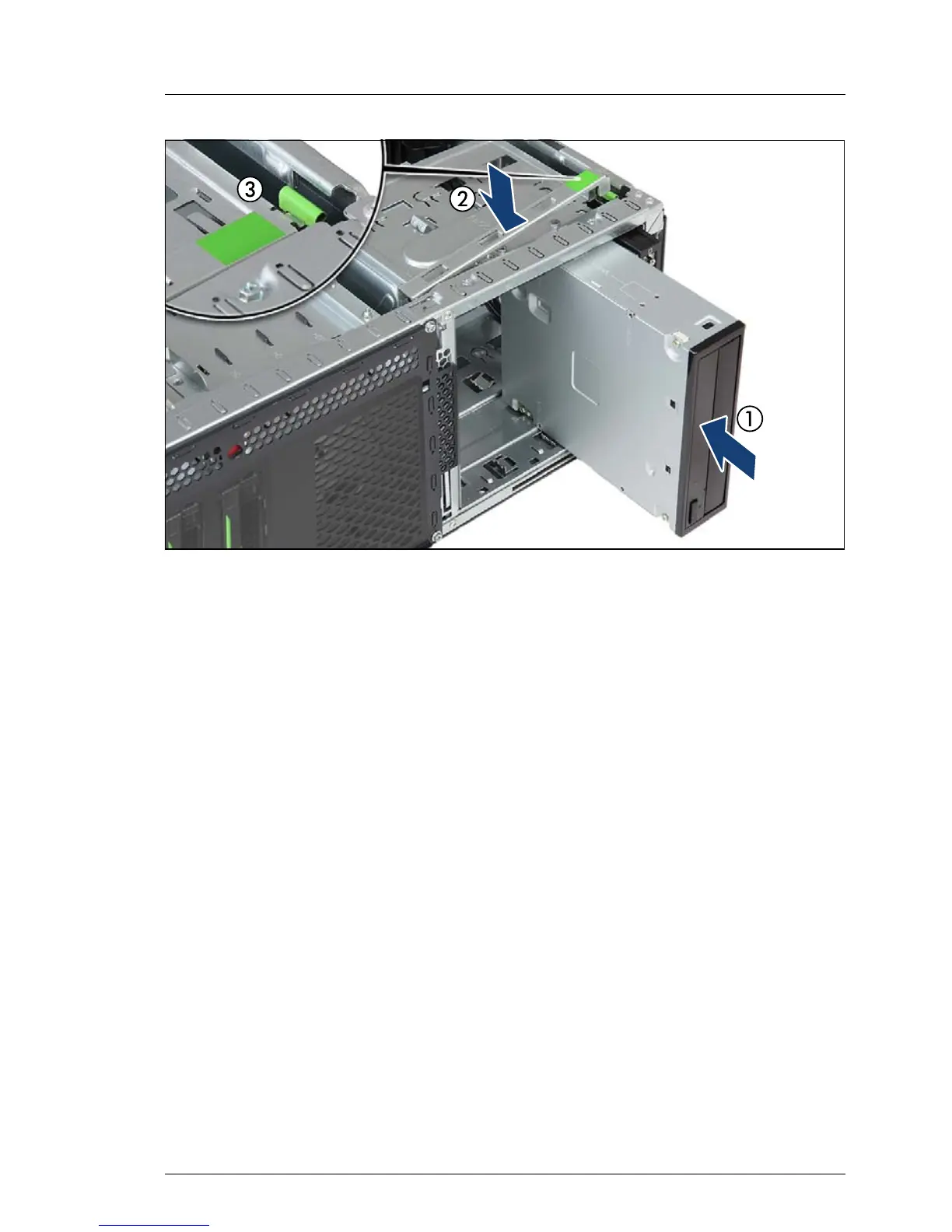

Figure 216: Inserting the accessible drive
Ê Insert the accessible drive into its installation bay and carefully push in until
the front screw hole on the front panel frame lines up with the centering pin
on the locking bar (1).
V CAUTION!
For installing a LTO drive: ensure that the power cables routed behind
the accessible drive cage are not trapped when pushing the LTO
drive in its bay.
Ê Close the locking bar (2) until it locks in place (3).
