Ê Lift off and remove the right side cover as shown.
I The right side cover is no longer required.
Ê Leave the server in its upside down position.
Removing rubber feet

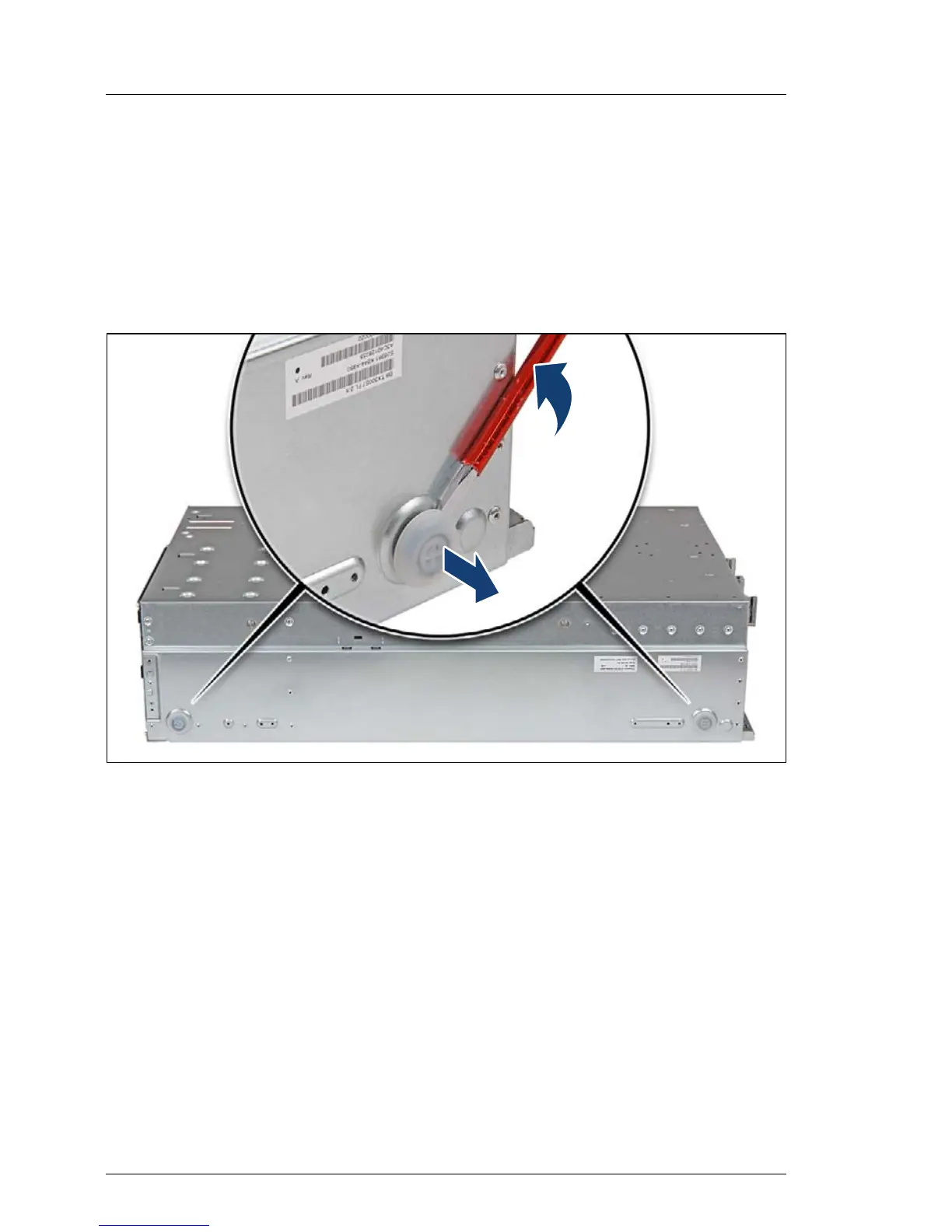

Figure 286: Removing rubber feet
Ê Using a slotted screw driver, slightly pry up on each rubber foot until it
detaches.
Ê Bring the server back to its horizontal position.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
