Removing the accessible drive cage
Ê Remove the front panel module as described in section "Removing the
defective front panel module" on page 335.
Ê If applicable, remove all accessible drives as described in section
"Removing an accessible drive" on page 306.
Ê If applicable, remove an HDD extension box as described in section
"Removing an HDD extension box" on page 190.

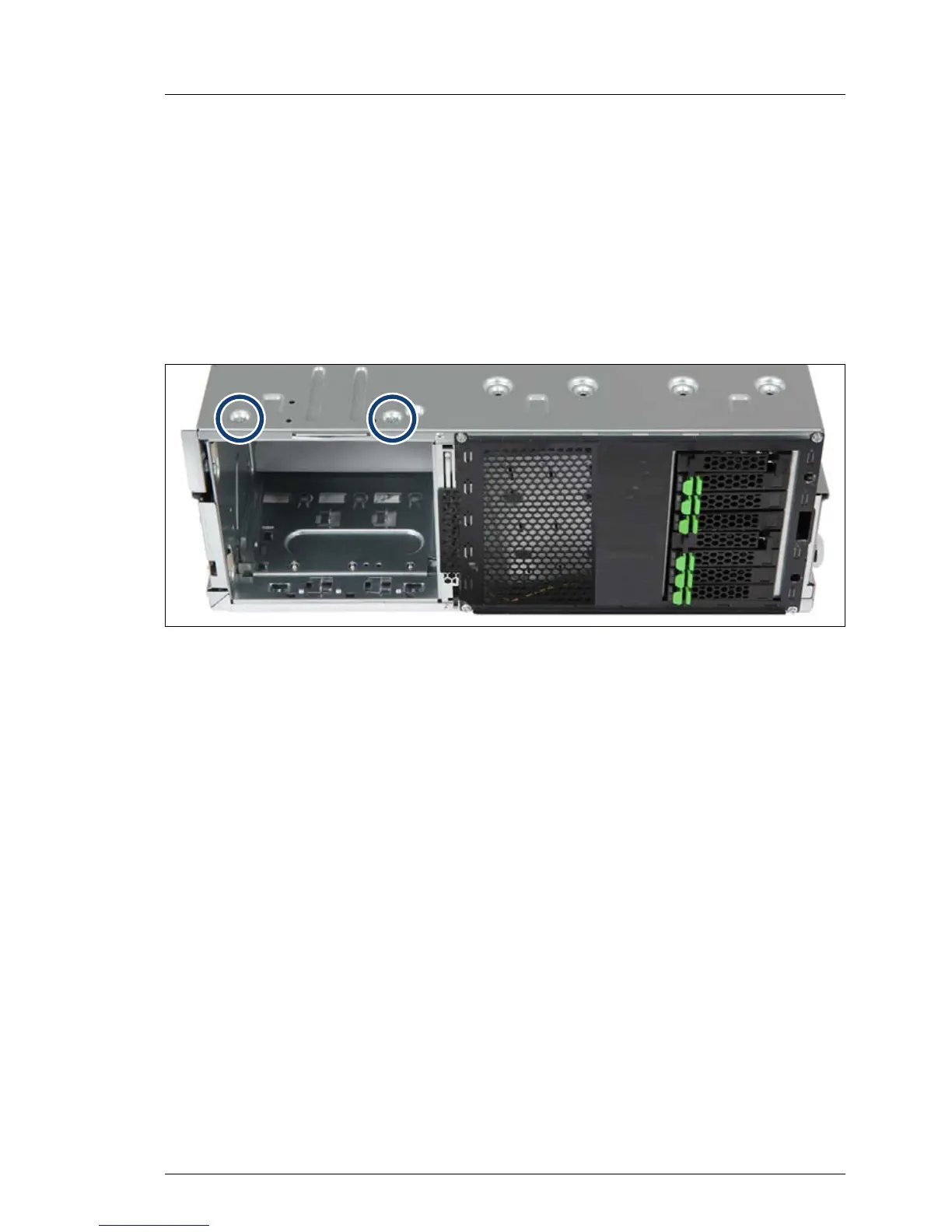

Figure 287: Detaching the accessible drive cage (A)
Ê Remove two screws from the bottom side of the server as shown.
Ê Bring the server back to its horizontal position.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
