Converting the accessible drive cage

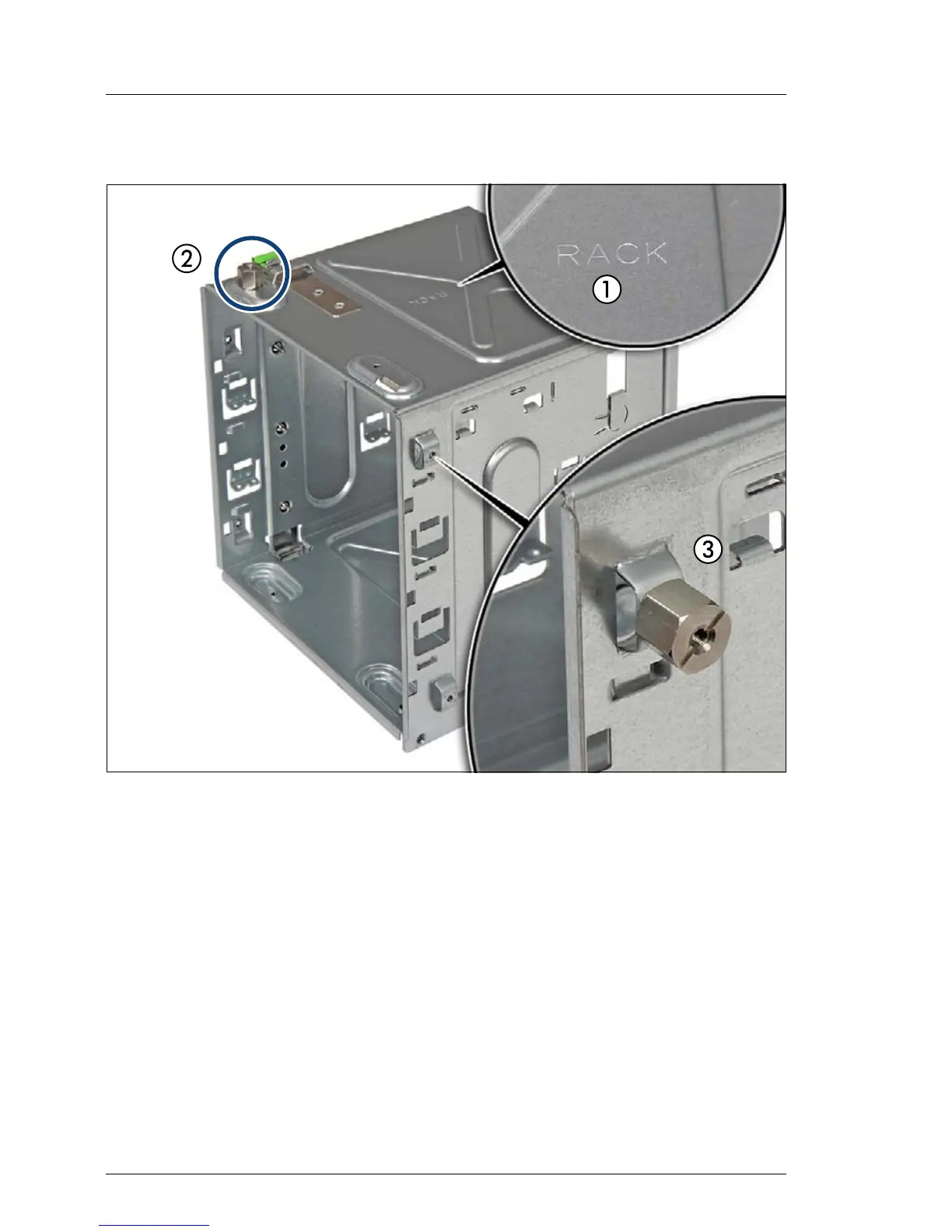

Figure 290: Converting the accessible drive cage
Ê Turn the accessible drive cover with its "RACK" stamping facing up (1, see
close-up).
Ê Remove the threaded bolt from the upper edge of the accessible drive cage
(2).
Ê Reinstall the threaded bolt on the side of the accessible drive cage as shown
(3, see close-up).
