Reinstalling the accessible drive cage

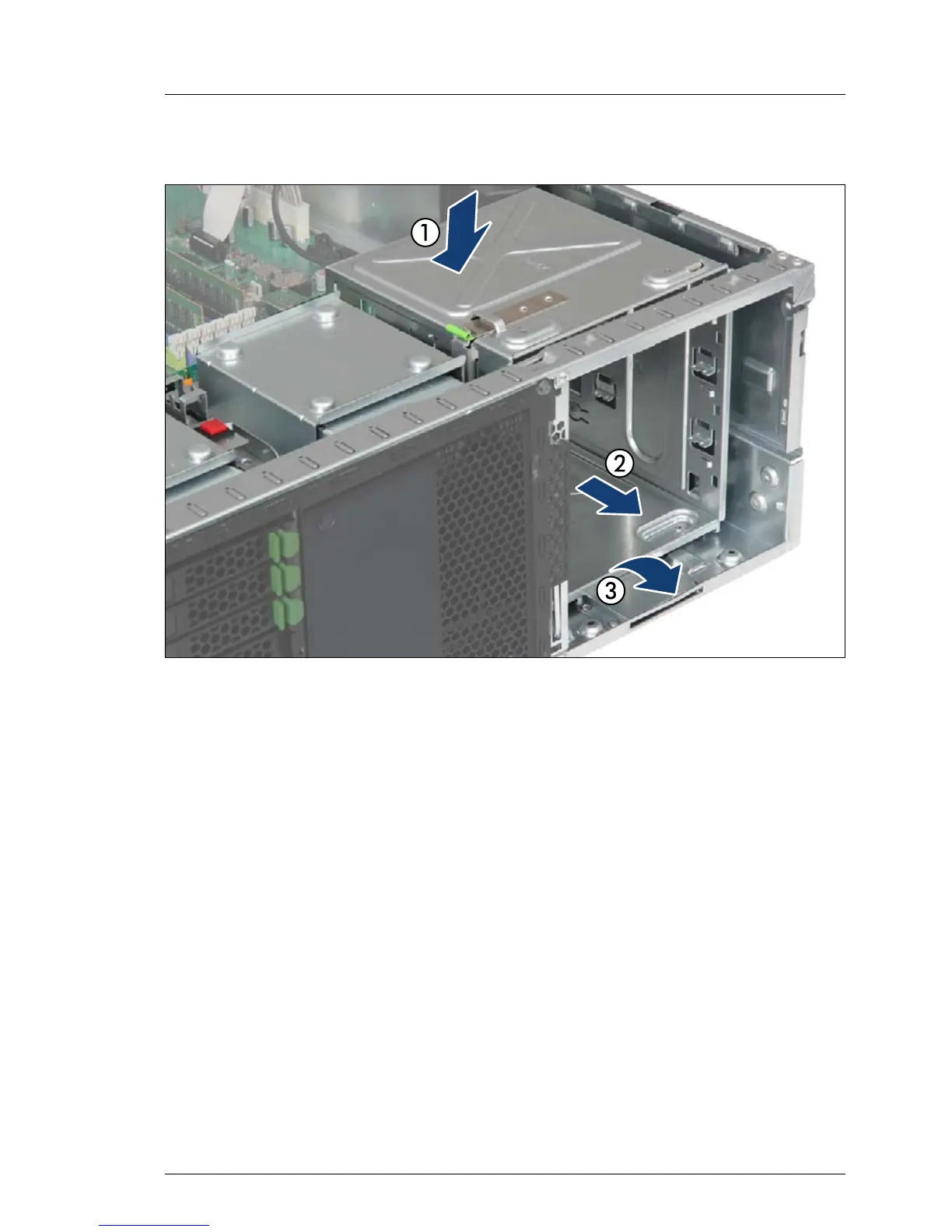

Figure 291: Mounting the accessible drive cage
Ê With its "RACK" stamping facing up, lower the accessible drive cage into the
chassis (1).
Ê Slide the accessible drive cage towards the server front as far as it will go
(2).
Ê Ensure that the front bottom edge on the accessible drive cover properly
engages in the slot in the chassis floor (3).
