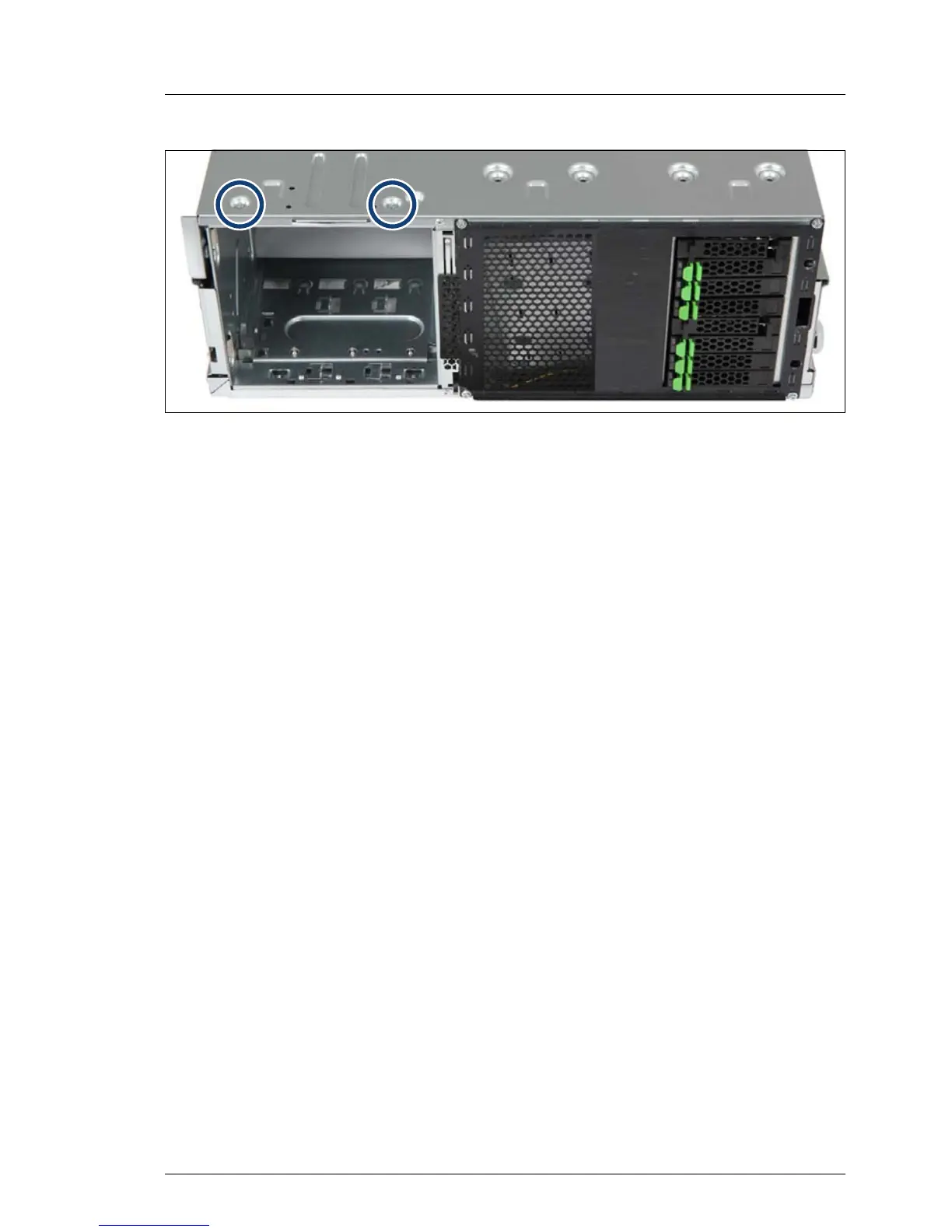

Figure 293: Securing the accessible drive cage (B)
Ê Carefully turn the server upside down.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
Ê Secure the accessible drive cage with two screws.
I Note the correct screw positions: The screw hole on the right that has
been used in the tower configuration remains empty.
Ê Install the front panel module as described in section "Installing the new front
panel module" on page 338.
Ê If applicable, install all accessible drives as described in section "Installing
an accessible drive" on page 301.
Ê If applicable, install an HDD extension box as described in section "Installing
an HDD extension box" on page 183.
Preparing the intrusion switch
Ê Remove the intrusion switch module as described in section "Removing the
defective intrusion switch cable" on page 399.
I It is not necessary to disconnect the intrusion switch cable from the
system board.
Ê Attach a rubber bumper to the front intrusion switch and reinstall the
intrusion switch module as described in section "Installing the new intrusion
switch cable" on page 401.
