Reinstalling accessible drives
Ê Reinstall the front panel (rotated by 90 degrees) as described in section
"Installing the new front panel module" on page 338.
Ê Reinstall all accessible drives into their original bays (rotated by 90
degrees). Reconnect the cables (see section "Cabling plans" on page 395).
Ê Reinstall all accessible drive filler covers and front covers as described in
section "Installing accessible drive dummy covers" on page 306.
Assembling the rack front cover

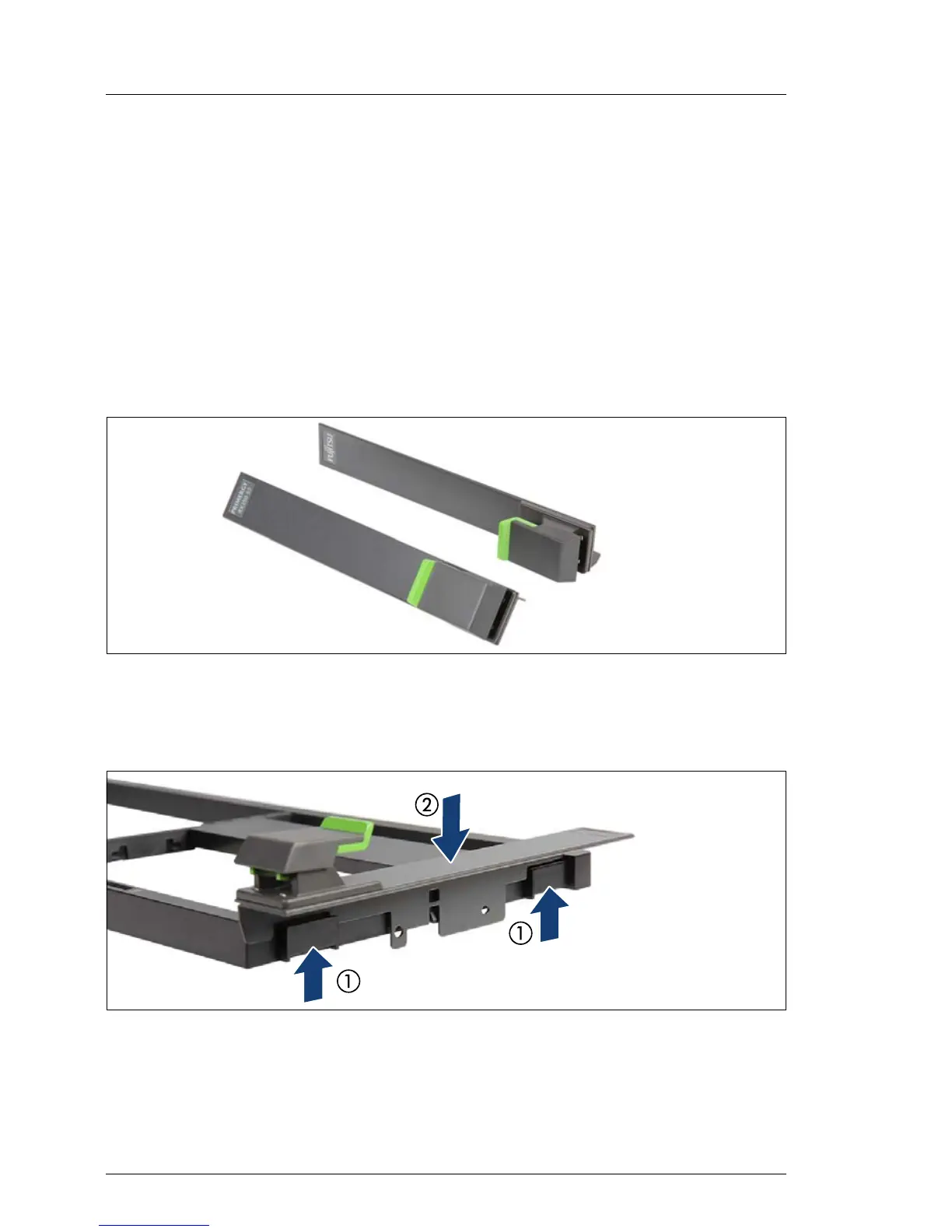

Figure 294: Rack mounting brackets with quick release levers
I The rack front cover consists of a plastic frame and two rack mounting
brackets with quick release levers.
Figure 295: Installing rack mounting brackets
Ê Fit the rack mounting bracket on the two hooks on the rack front bezel (1).
Ê Firmly press down on the rack mounting bracket until it is fully seated in the
rack front bezel (2).
