Ê Mount the second rack mounting bracket accordingly.

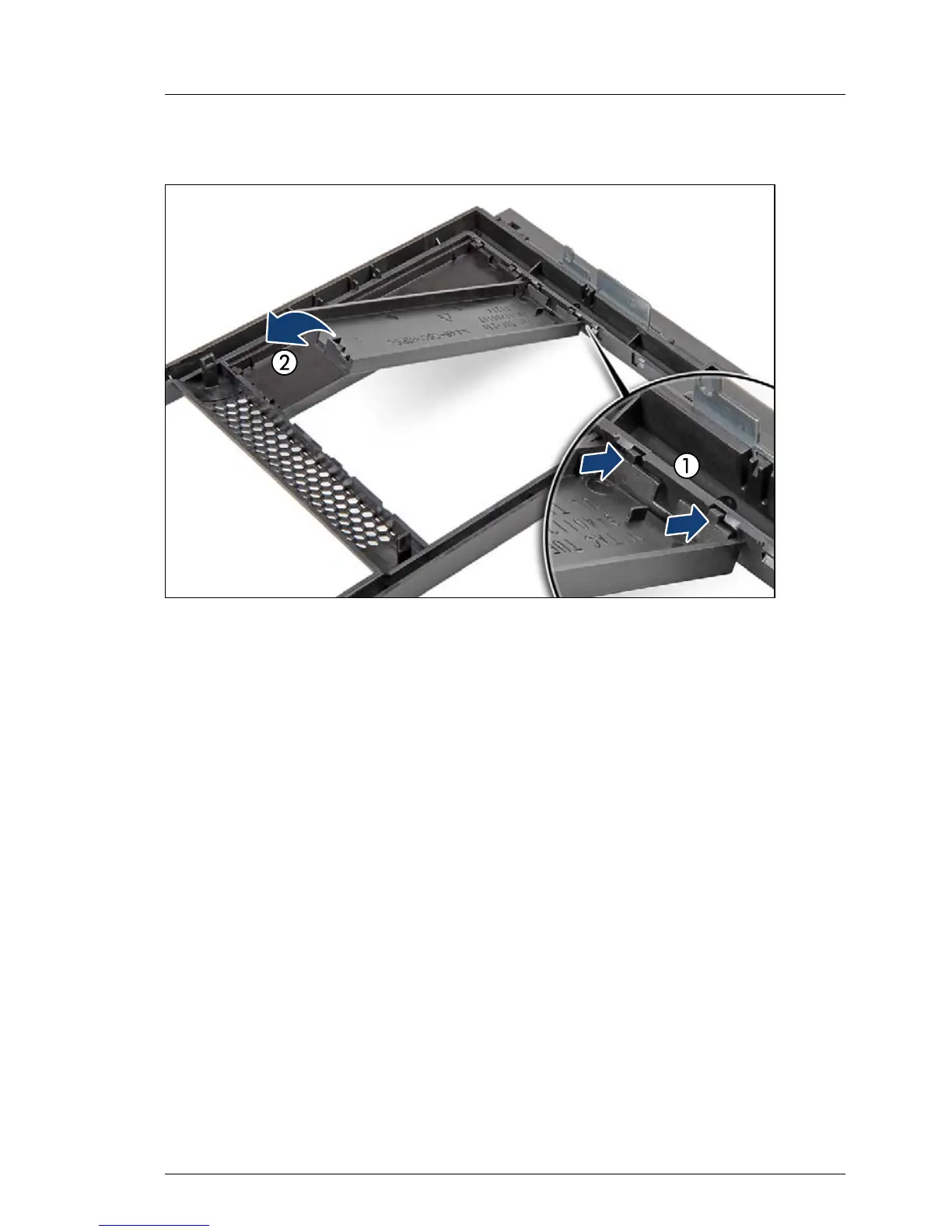

Figure 296: Installing accessible drive dummy covers
Ê If available, reinstall all accessible drive dummy covers into their original
locations (rotated by 90 degrees):
Ê Ensure that an accessible drive filler cover has been installed in every
empty drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
I Use the dummy covers that have been removed from the front cover
during the preliminary steps.
Ê Install the rack front cover as described in section "Installing the rack front
cover" on page 63.
Ê If applicable, remove all accessible drives or dummy covers as described in
section "Removing an accessible drive" on page 306.
