Preparing for an Exam
4
-
14
LOGIQ 7 Basic User Manual
Direction 2392206-10
0 Rev. 1
Reviewing the p
atient exam
T
o review the patient exam,
1.
Search th
e patient by using P
atient Sea
rch Field.
2.
Move the cur
sor to the patient and pres
s
Set
.
3. Select
Review
.
4.

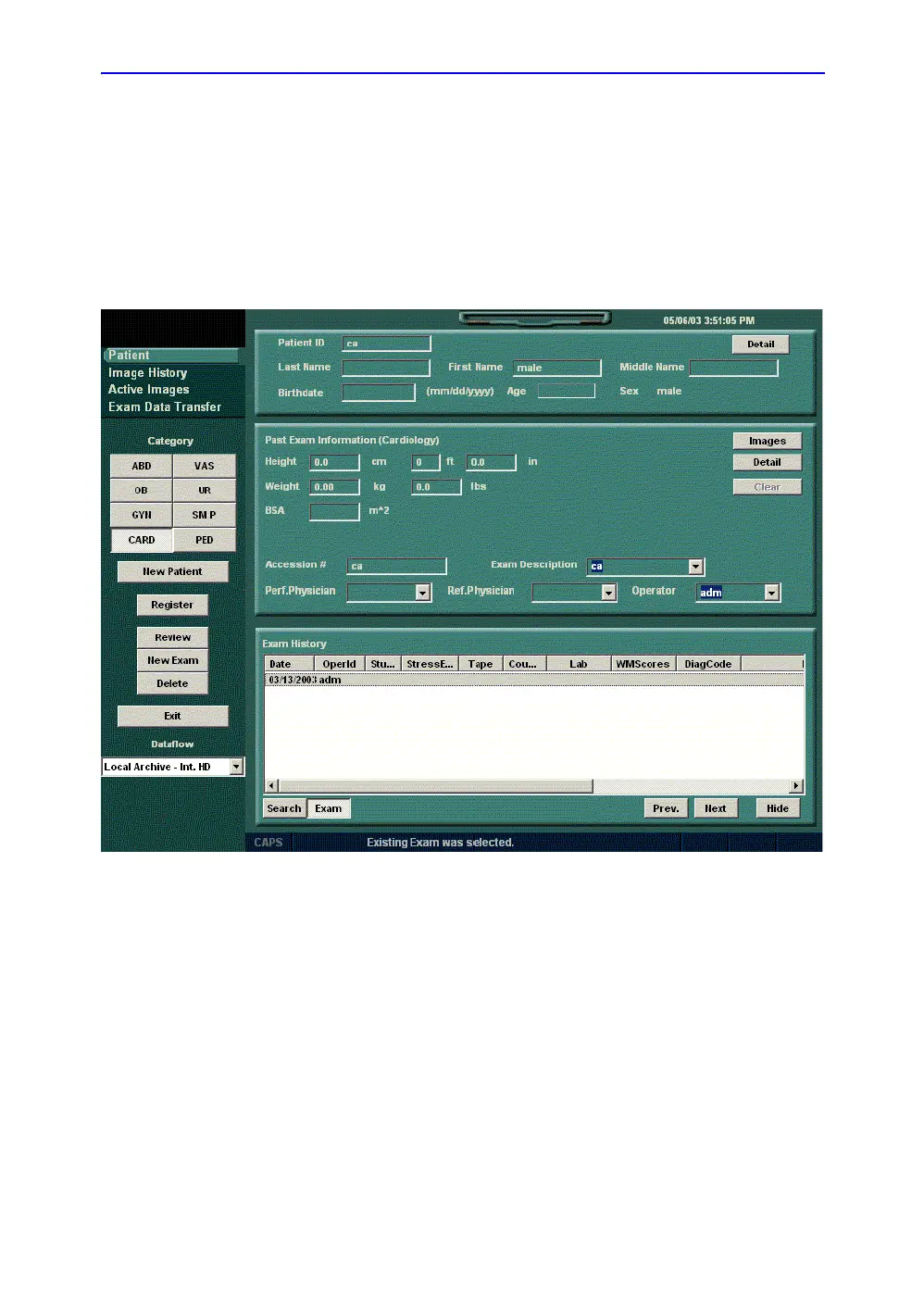

The Patient Exam screen is displayed.
Figure 4-8.
Patient Exam Screen
125
127
