Optimizing the Image
5-36 LOGIQ 7 Online Help
Direction 2392536-100 Rev. 1
Activating TIC
1. Scan the patient in Contrast mode or select a desired cine
loop from the stored images.
NOTE: Images from the current scan session (already in CINE) or
from a saved image loop can be used for TIC analysis.
NOTE: TIC analysis is only available if the user has selected an
image loop. If the user has selected a saved still image (just
one frame), TIC analysis is not available.
2. Press Freeze.
NOTE: The TIC package is only available when the system is in
FREEZE mode.
3. TIC Analysis displays on the Cine Touch Panel.

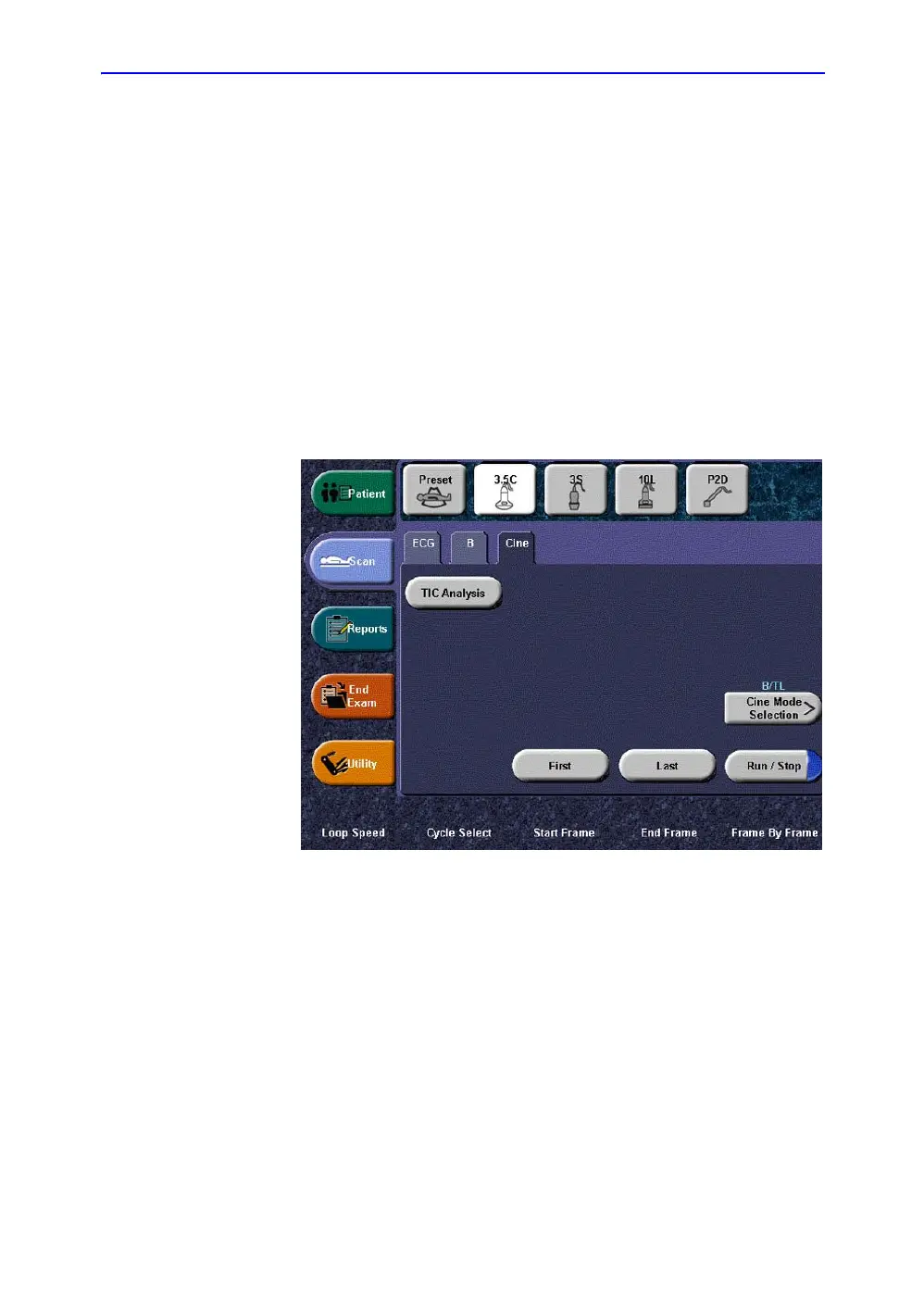

Figure 5-10. Cine Touch Panel
NOTE: Subsequent TIC processing is done on the images stored in
CINE memory.
