Optimizing B-Mode
LOGIQ 7 Online He
lp
5
-
37
Direction 2392536-
100 Rev. 1
Activating TIC (continued)
4. Select
TIC Analysis
.
The TIC Analysis screen and T
ouch
Panel displays
. T
o toggle the tra
ckball function
between TIC
and Scroll, press
Scan Area
.

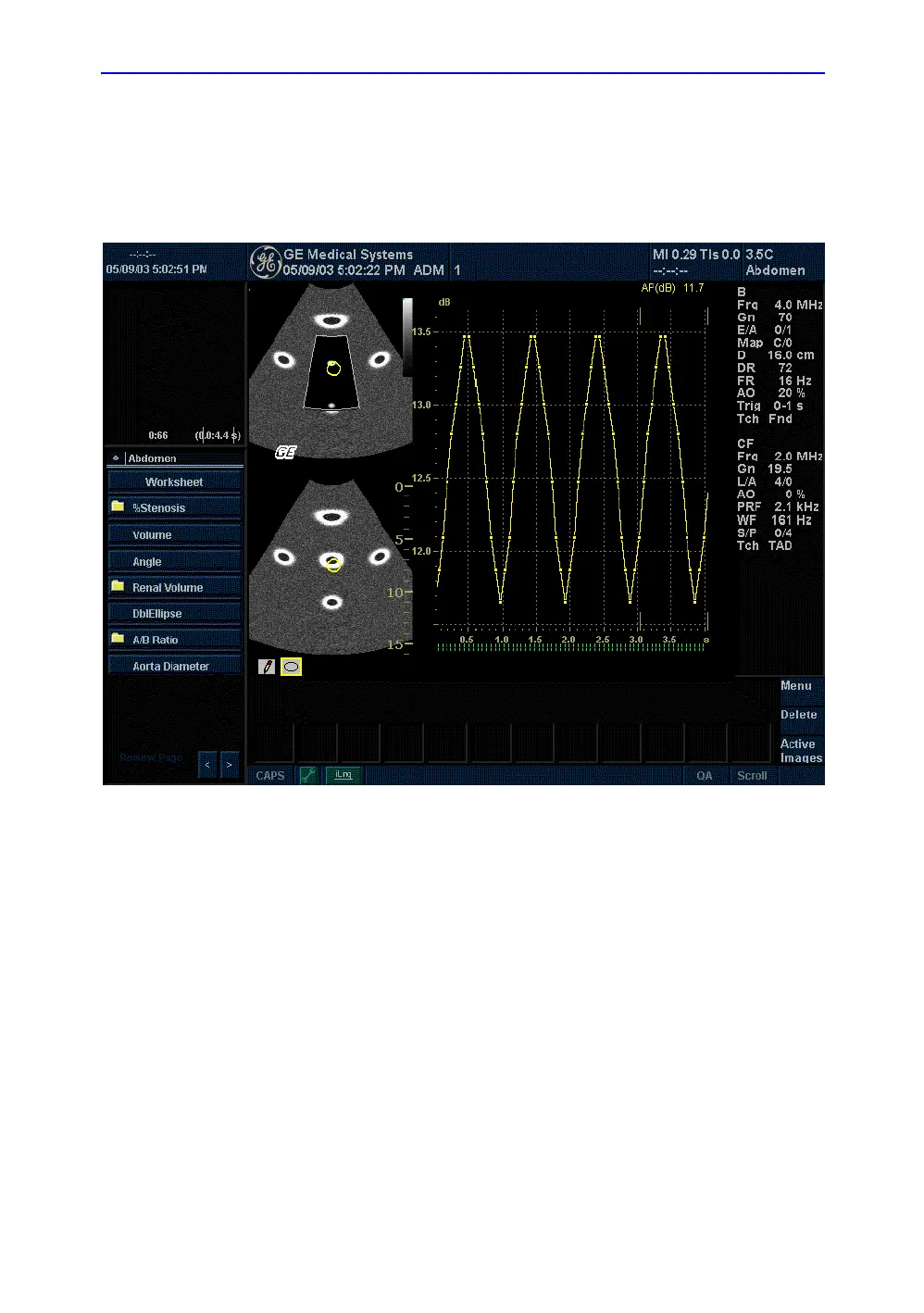

Figure 5-1
1.
TIC Analysis Screen (T
AD
mode)
176
178
