Optimizing the Image
5-38 LOGIQ 7 Online Help
Direction 2392536-100 Rev. 1
Activating TIC (continued)

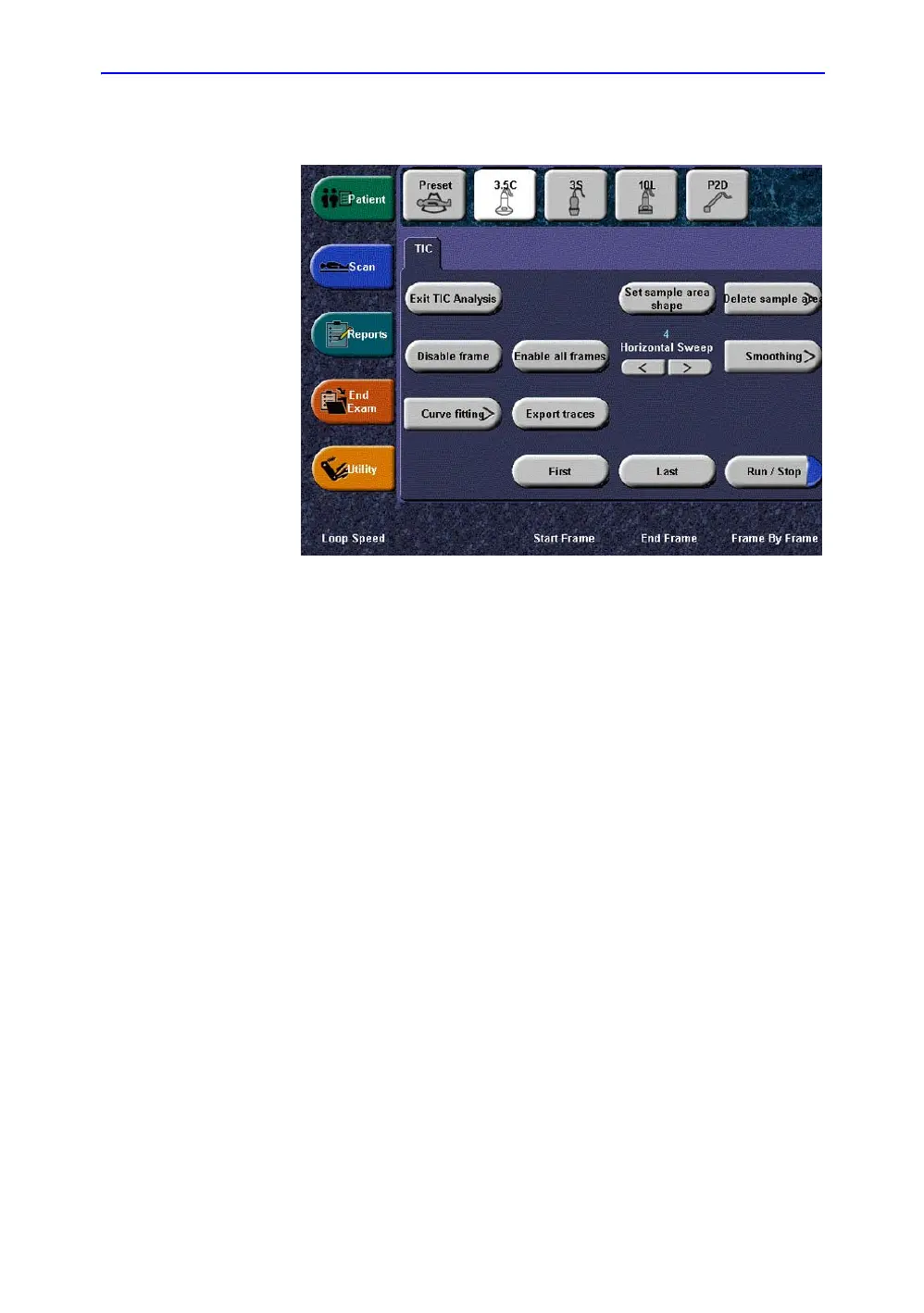

Figure 5-12. TIC Analysis Touch Panel
NOTE: The CINE Touch Panel is available to use when in TIC
Analysis mode. CINE Touch Panel controls retain their
traditional functions. While the CINE Touch Panel is on the
top level, the trackball and other imaging controls perform
as they usually do in standard CINE mode.
Exiting TIC Analysis
There are several methods to exit TIC Analysis.
• Toggling Exit TIC Analysis on the TIC Touch Panel.
• Press Freeze to unfreeze and resume scanning.
• Press any other button that returns the system to real-time
scanning.
