General Measurements and Calculations
7-32 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Setting up an automatic measurement flow
In some cases, related measurements are put in a
measurement folder. This allows you to logically organize
measurements. It also allows you to specify that the system
automatically start each measurement in a folder, one after the
other. This is the automatic sequence feature. To use this
feature:
1. In the Selection menu, select the folder that contains the
measurements you want.
The system displays the folder and lists the measurements.
2. In the Folder section of the Measurement & Analysis screen,
select Auto sequence. For OB/GYN Vessel measurements,
Umbilical Doppler measurements are put in the Umbilical
measurement folder.

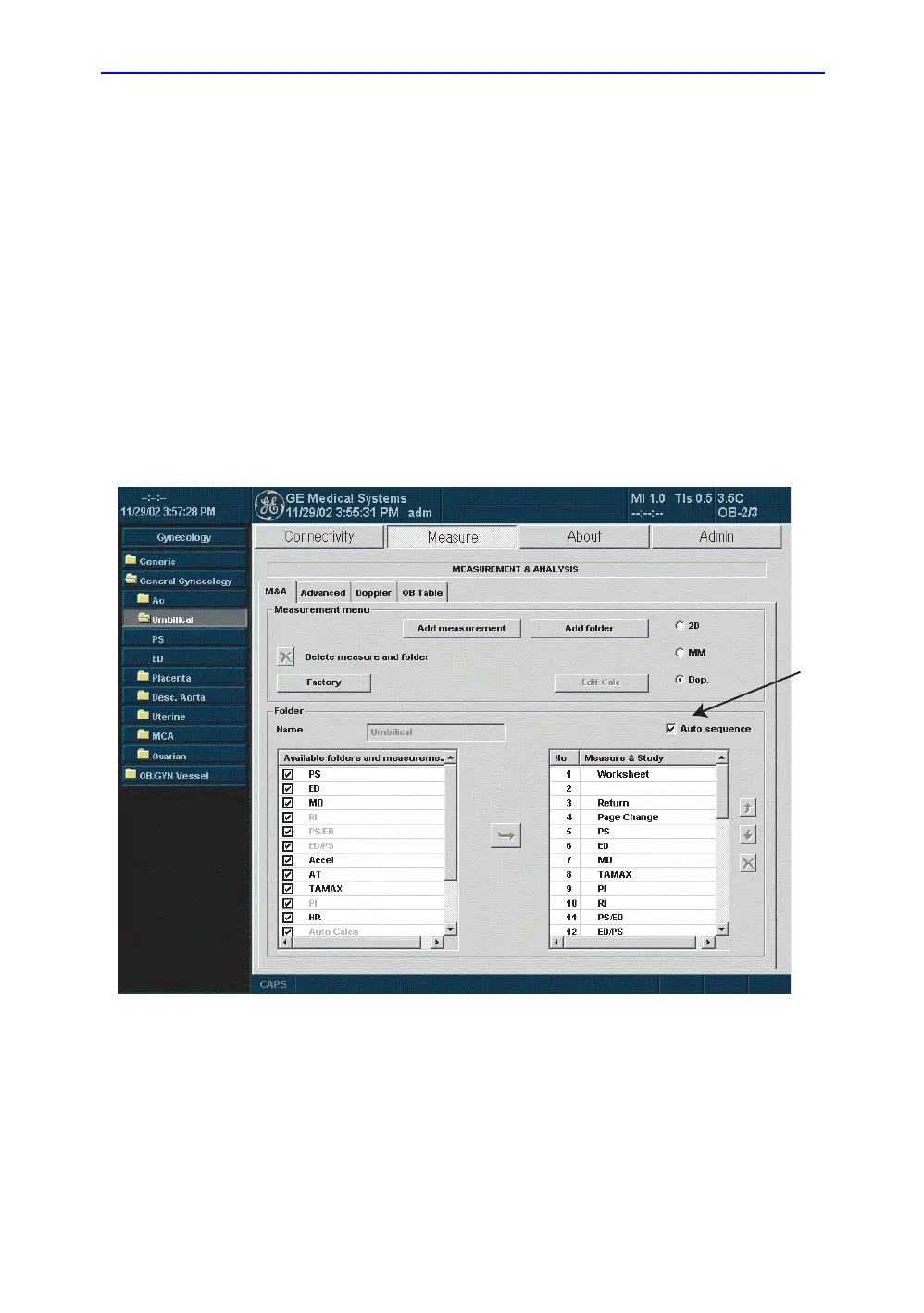

Figure 7-17. Measurement & Analysis screen: Auto sequence
1. Selection Menu 2. Auto Sequence
