Mode Measurements
LOGIQ 7 Basic User Manual 7-57
Direction 2392206-100 Rev. 1
Circumference and area (ellipse) measurement (continued)

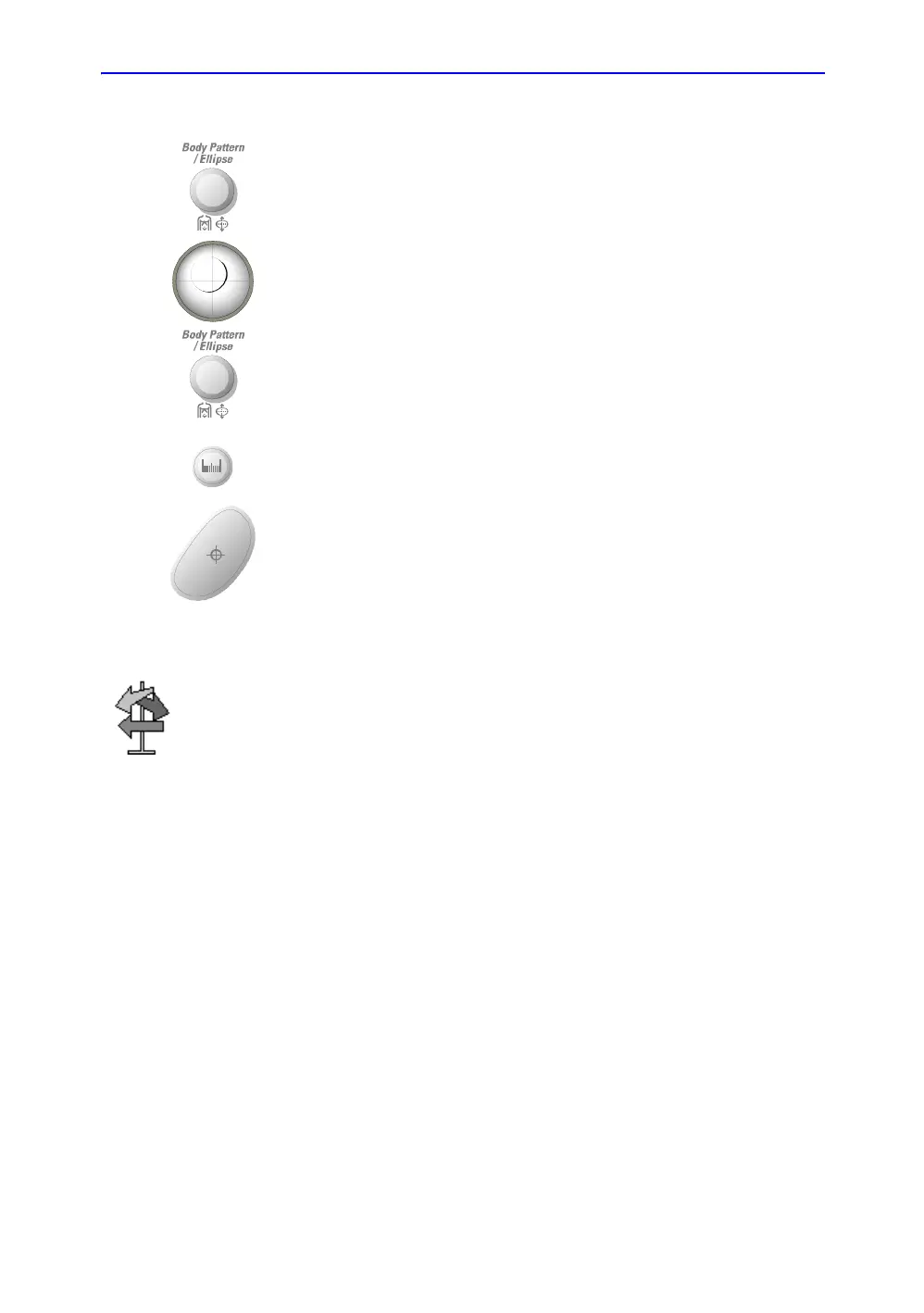

• Adjust the Ellipse control; an ellipse with an initial circle shape displays.
• To position the ellipse and to size the measured axes (move the calipers),
move the Trackball.
• To increase the size, adjust the Ellipse control in a clockwise direction. To
decrease the size, adjust the Ellipse control in a counterclockwise direction.
Measur
• To toggle between active calipers, press Measure.
Set
• To complete the measurement, press Set. The system displays the
circumference and area in the Results Window.
HINTS
Before you complete the ellipse measurement:
• To erase the ellipse and the current data measured, press
Clear once. The original caliper is displayed to restart the
measurement.
• To exit the measurement function without completing the
measurement, press Clear a second time.
