Circumference and area (ellipse) measurement
You can use an ellipse to measure circumference and area. To
measure with an ellipse:
Measur
e

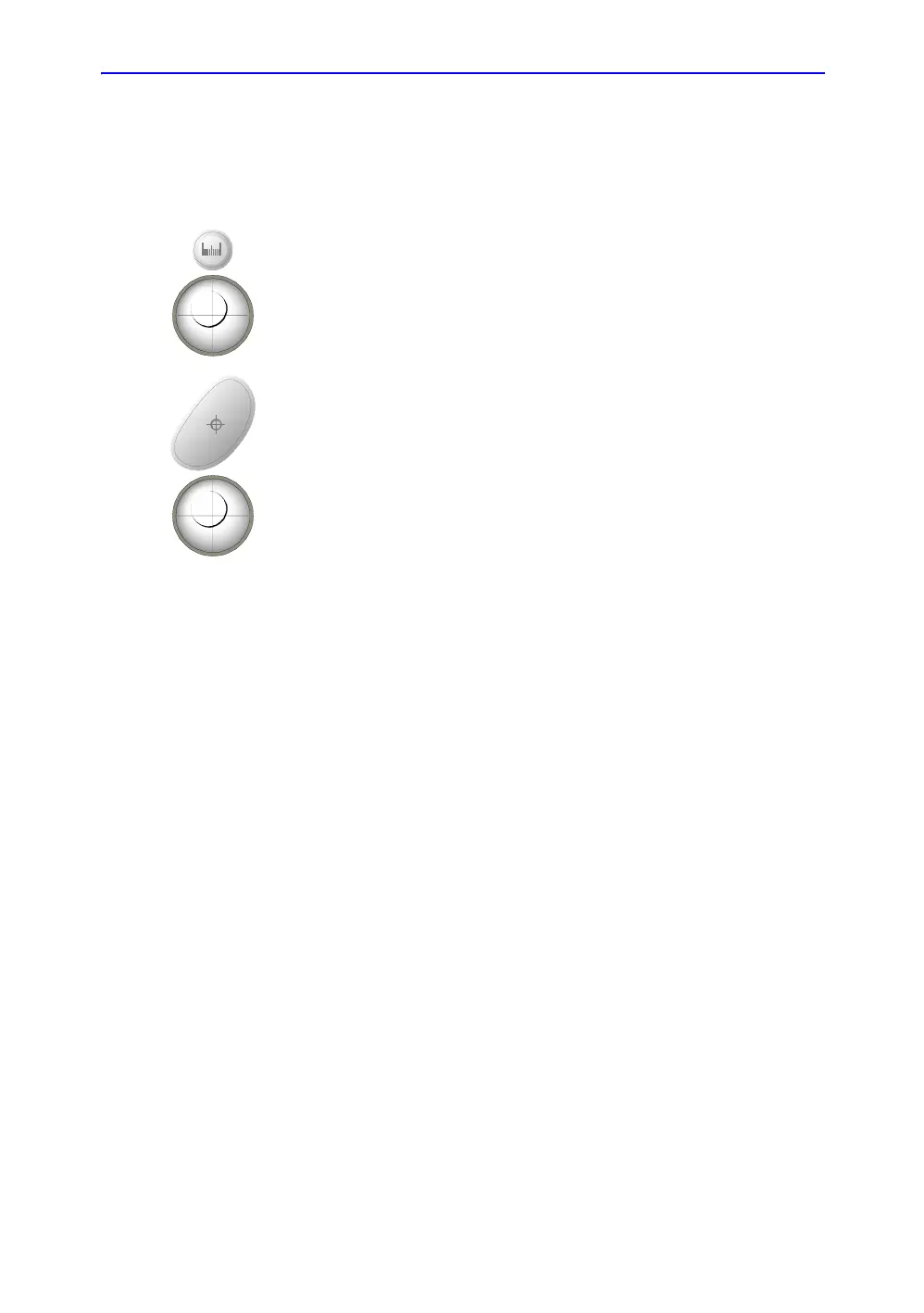

• Press Measure once; an active caliper displays.
• To position the active caliper, move the Trackball.
Set
• To fix the start point, press Set. The system fixes the first caliper and displays
a second active caliper
• To position the second caliper, move the Trackball.
