Generic Measurements
LOGIQ 7 Basic User Manual 7-83
Direction 2392206-100 Rev. 1
Heart Rate
To calculate the heart rate:
1. From the Generic Touch Panel, select HR.
The system displays an active caliper.
2. To position the caliper at a recognizable point in the first
cycle, move the Trackball.
3. To fix the first caliper, press Set.
The system displays a second active caliper.
4. To position the caliper at the identical point in the next cycle
(depending on preset), you need to move the Trackball.
NOTE: In the message bar at the bottom of the display, the system
indicates the number of cycles you should measure.

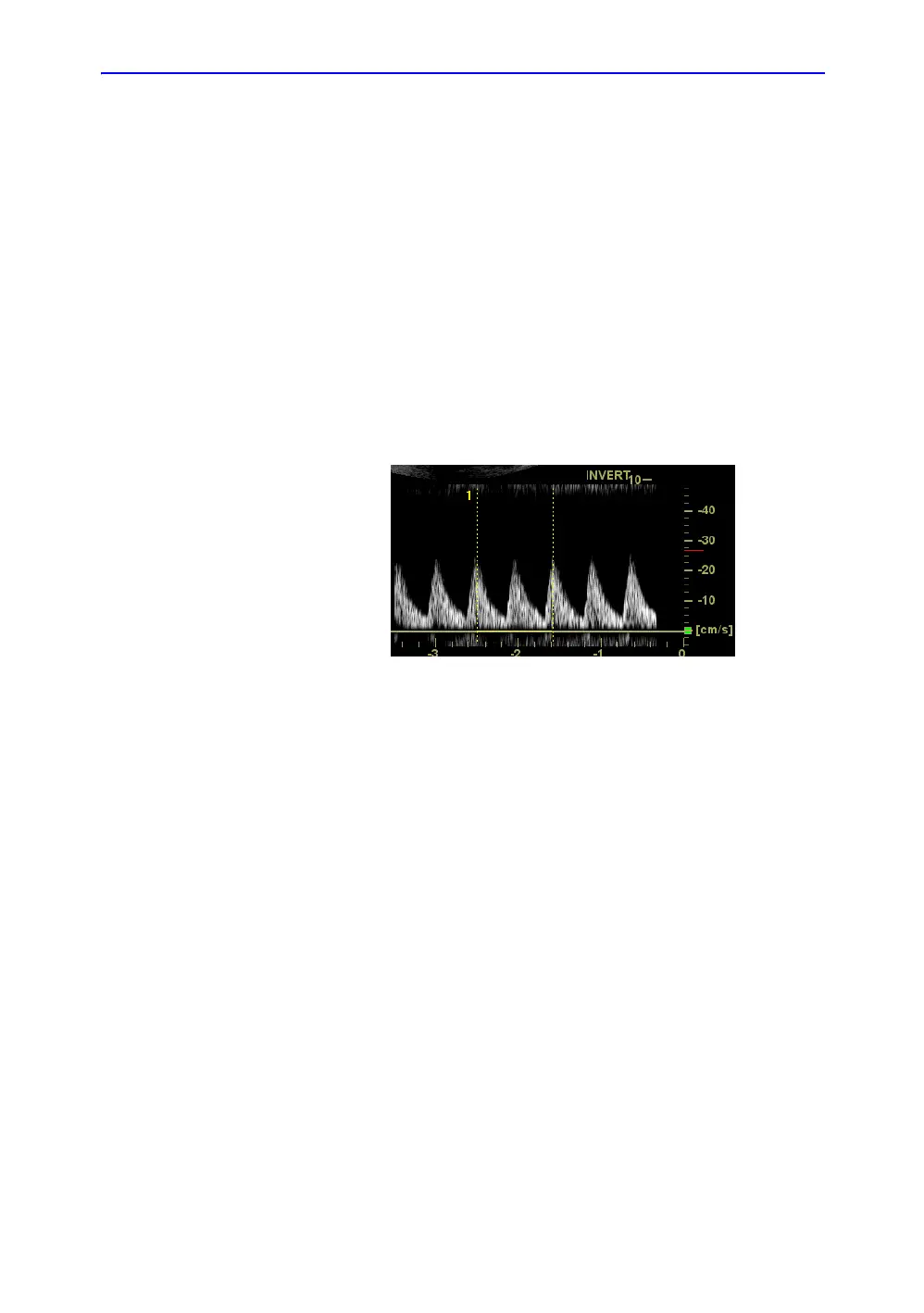

Figure 7-37. Two Heart Beat Reference (example in Doppler
mode)
5. To complete the measurement and transfer the calculation
to the worksheet, press Set.
NOTE: For information about how to specify the number of heart beats
that the system will use, See ‘Specifying measurement and
display options’ for more information.
