General Measurements and Calculations
7-10 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Specifying measurement and display options
The Options tab allows you to specify the following
measurement and display options:
• Whether to display the Results Window and Summary
Window
• The cursor size
• The number of heart rate cycles to use to calculate heart
rate
• Where to position the Results Window on the monitor
display
• Choose whether the Doppler waveform is automatically or
manually traced.
• Choose to display the caliper line

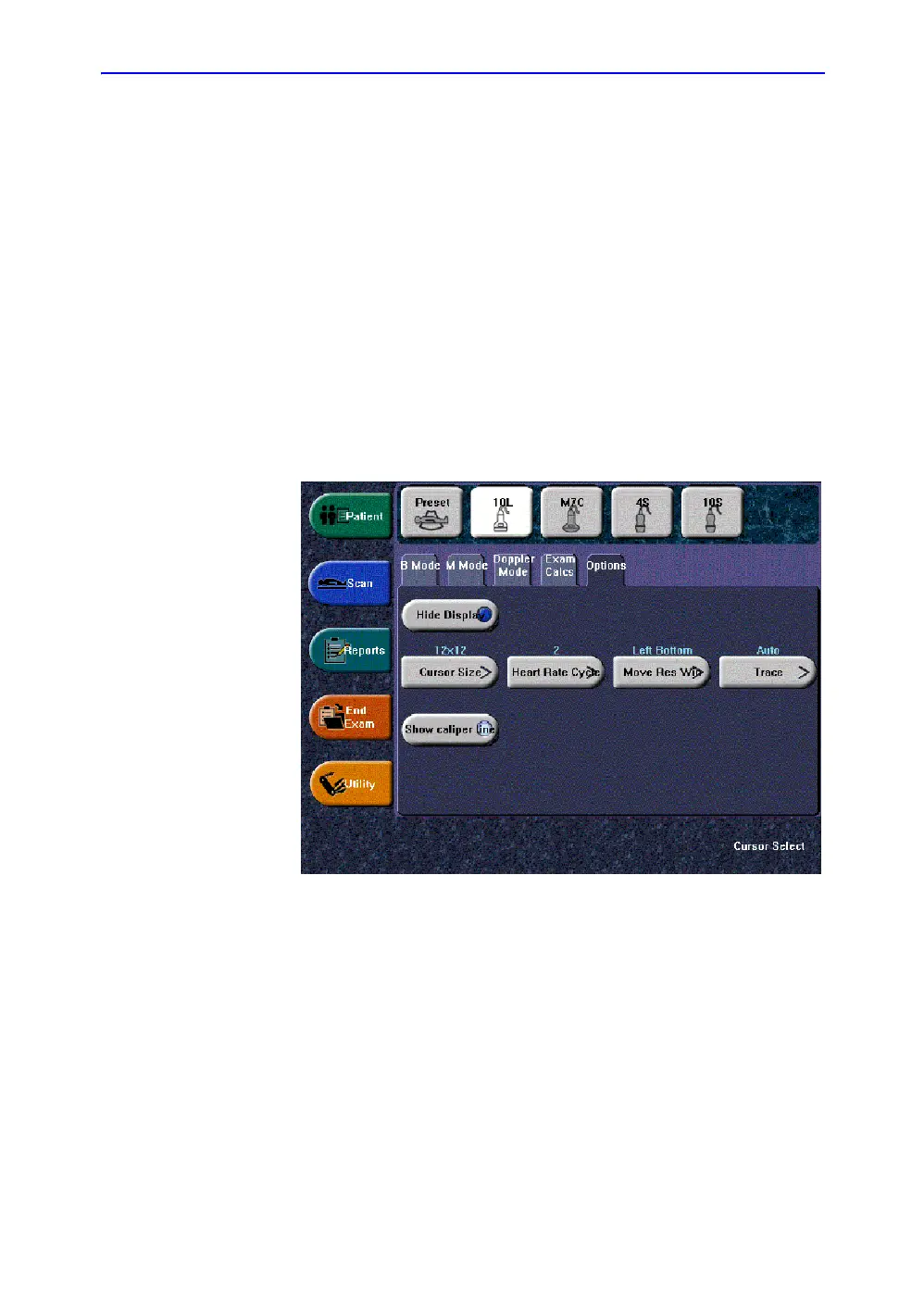

Figure 7-3. Measurement and Display Options
