OB/GYN
9-6 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
To Start an Obstetrics Exam (continued)
After you complete the patient information, you can begin the
scan.
1. To change from the Patient Data Entry screen to the Scan
screen, do one of the following:
• On the keyboard, press Esc.
• On the Touch Panel, select Scan.
• On the Control Panel, select Patient or Freeze.
• On the Control Panel, press the B-Mode key.
The system displays the Scan screen.
2. To choose the appropriate probe, select the probe icon on
the Touch Panel.
3. On the Control Panel, press Measure.
The default Obstetrics study is displayed on the Touch
Panel. Figure 9-1 shows the OB-General study.

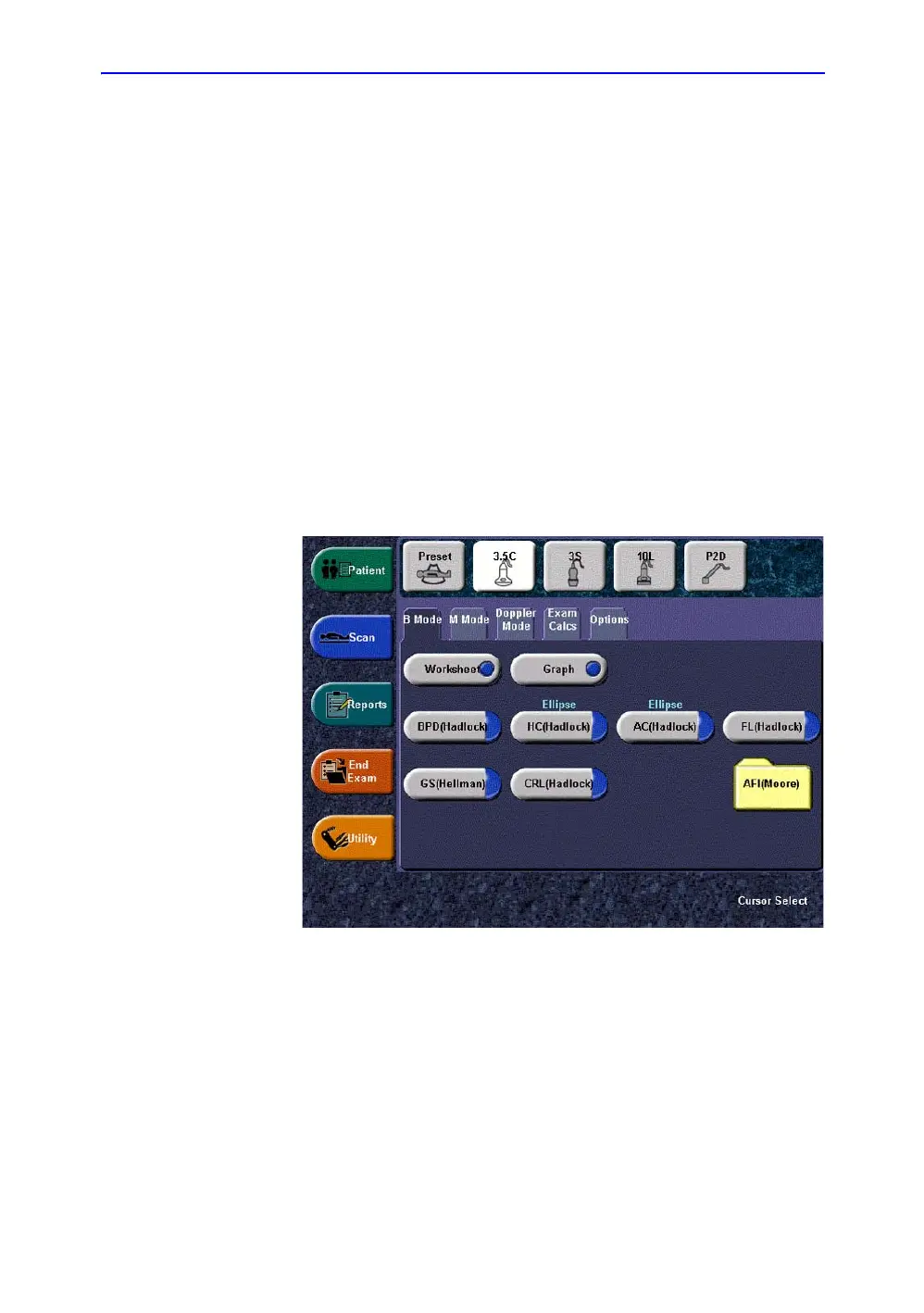

Figure 9-1. OB-General Study
