Vascular
11-14 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Auto Vascular
Calculation Exam
(continued)
The Auto Vascular calculation is assigned to particular vessel
measurements.
1. Press Measure to display the Measurement menu.
2. Select the location of the vessel (Prox, Mid, or Dist) and
Side (Right or Left).
3. Select the desired vessel name from the Touch Panel.
Selected vessel measurements are automatically assigned
with the Auto Vascular calculation. The results are then
displayed in the Results Window.

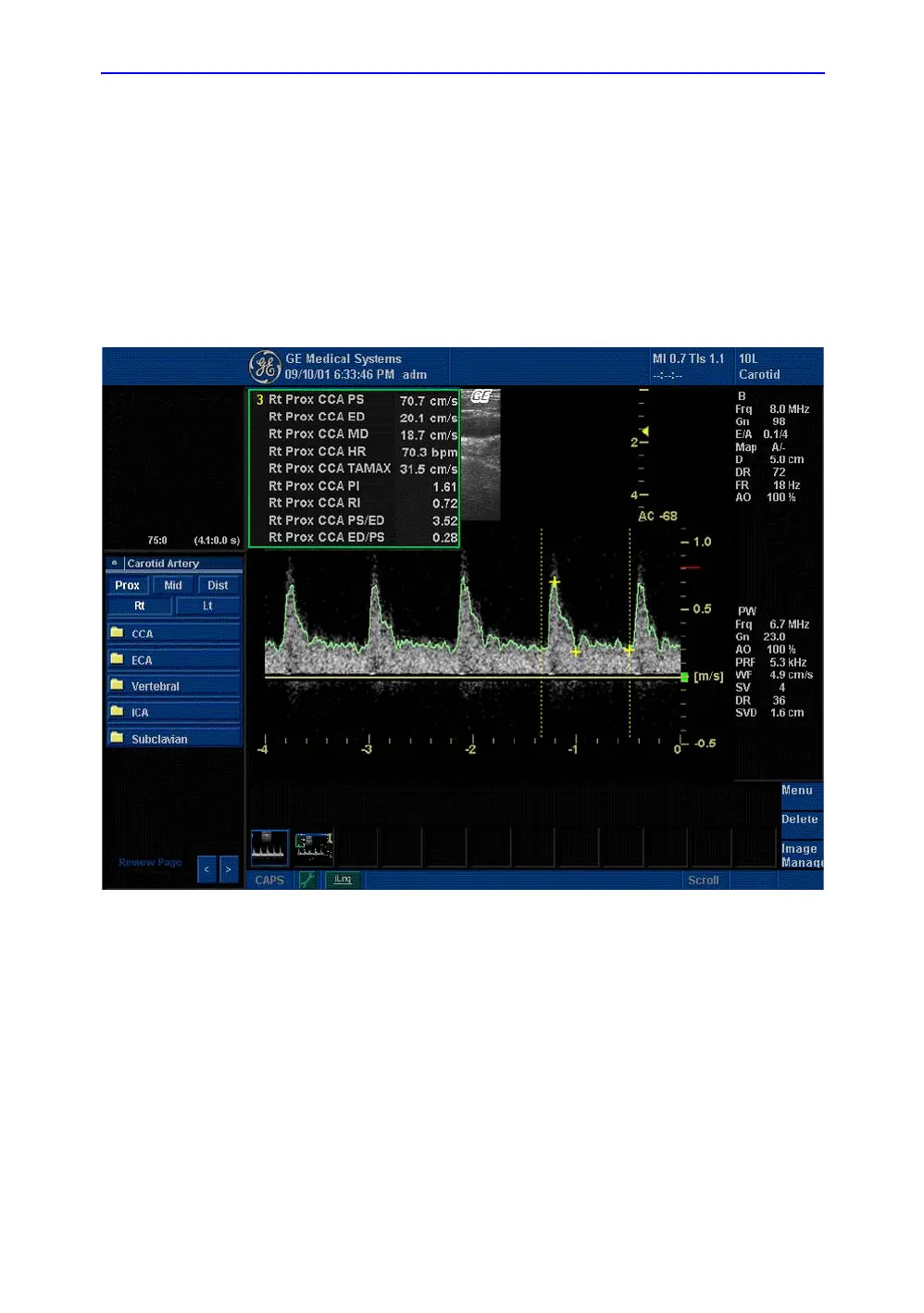

Figure 11-8. Assigned Vessel
NOTE: When you want to cancel the assignment, you can use the
Cancel Transfer Touch Panel key. See ‘Cancel Transfer’ for
more information.
