Vascular
11-16 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Manual Vascular Calculation
You can perform the following calculations manually when Auto
Doppler Calculation is not activated.
1. Press Measure.
If necessary, you can select another Exam Calc and then
select parameters from Modify Calculation.
2. Select the location of the vessel (Prox, Mid, or Dist) and
Side (Right or Left).
3. Select the desired vessel folder.
The Measurement menu is displayed.

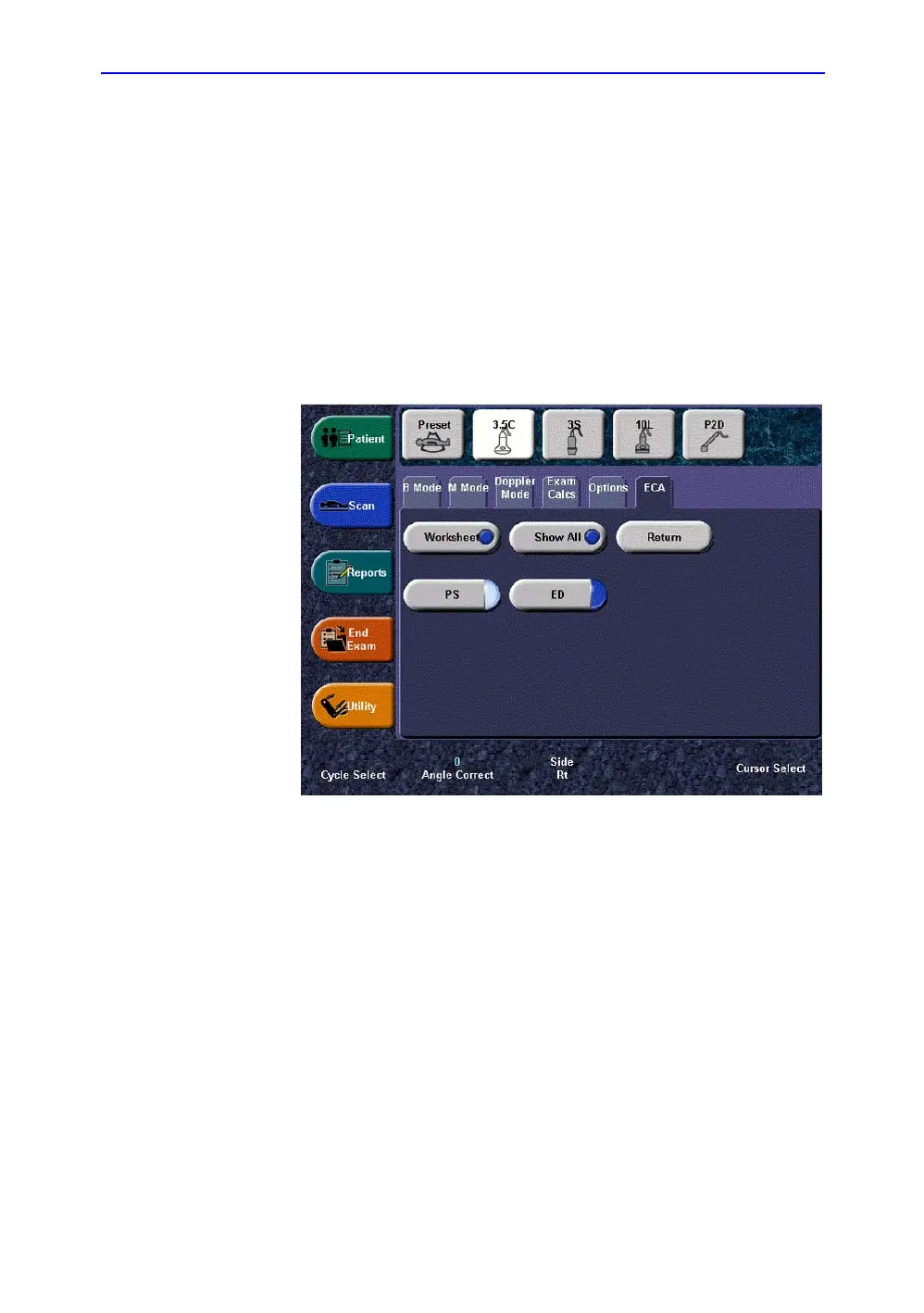

Figure 11-9. Measurement Menu Example
4. Make the required measurements according to the system,
or select your preferred measurements.
