Using body pattern application libraries
See the following Body Patterns Small Parts Touch Panel.

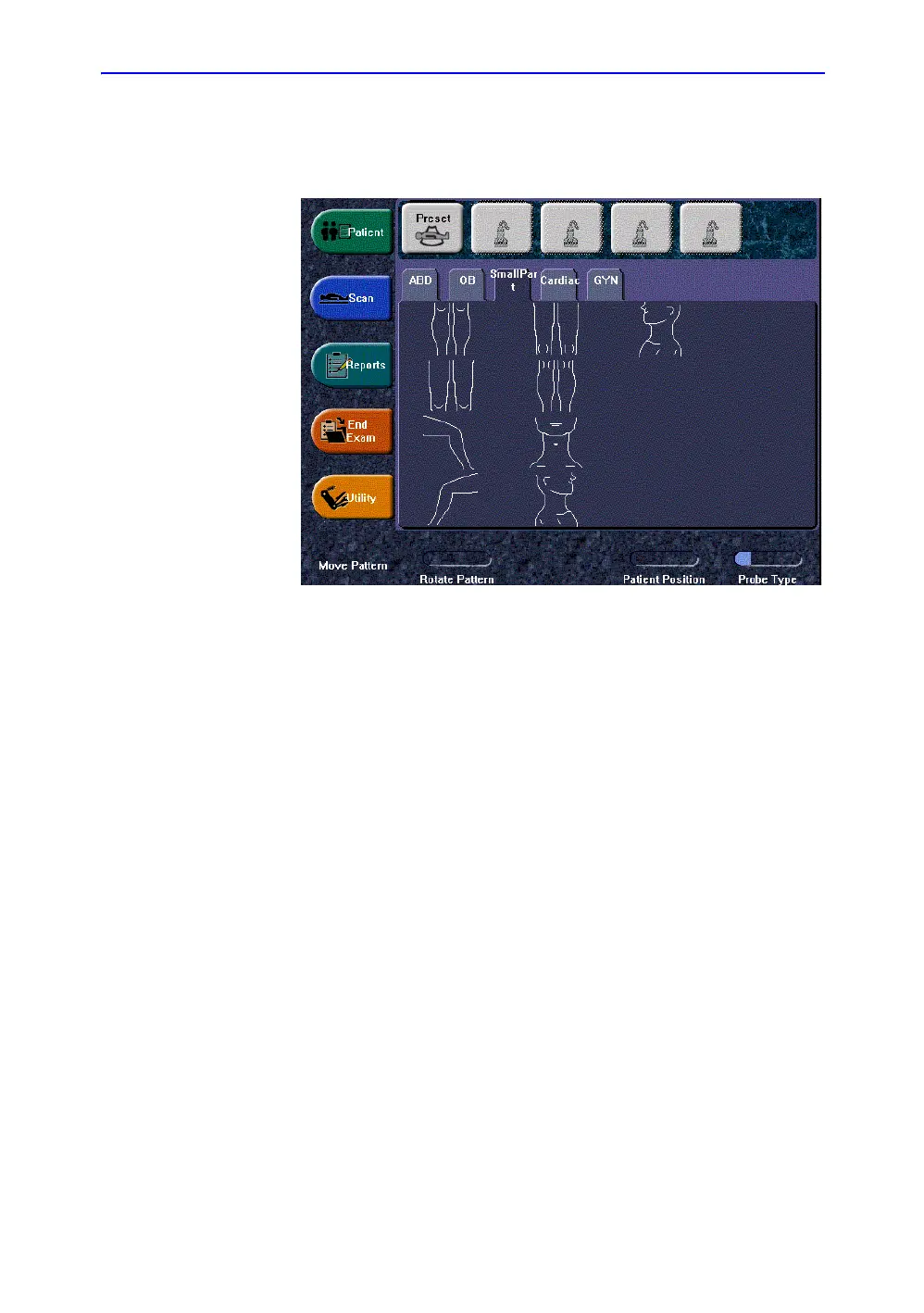

Figure 16-48. Body Patterns Small Parts Touch Panel
To select a body pattern library, select the tabs (for example,
ABD or OB).
To select body patterns, use the Ellipse/Body Pattern control
on the Control Panel.
