Multi-Angle Biopsy Guide Assembly (continued)
Choose the desired gauge (size) needle barrel. Twist it back
and forth to remove it from the plastic tree.

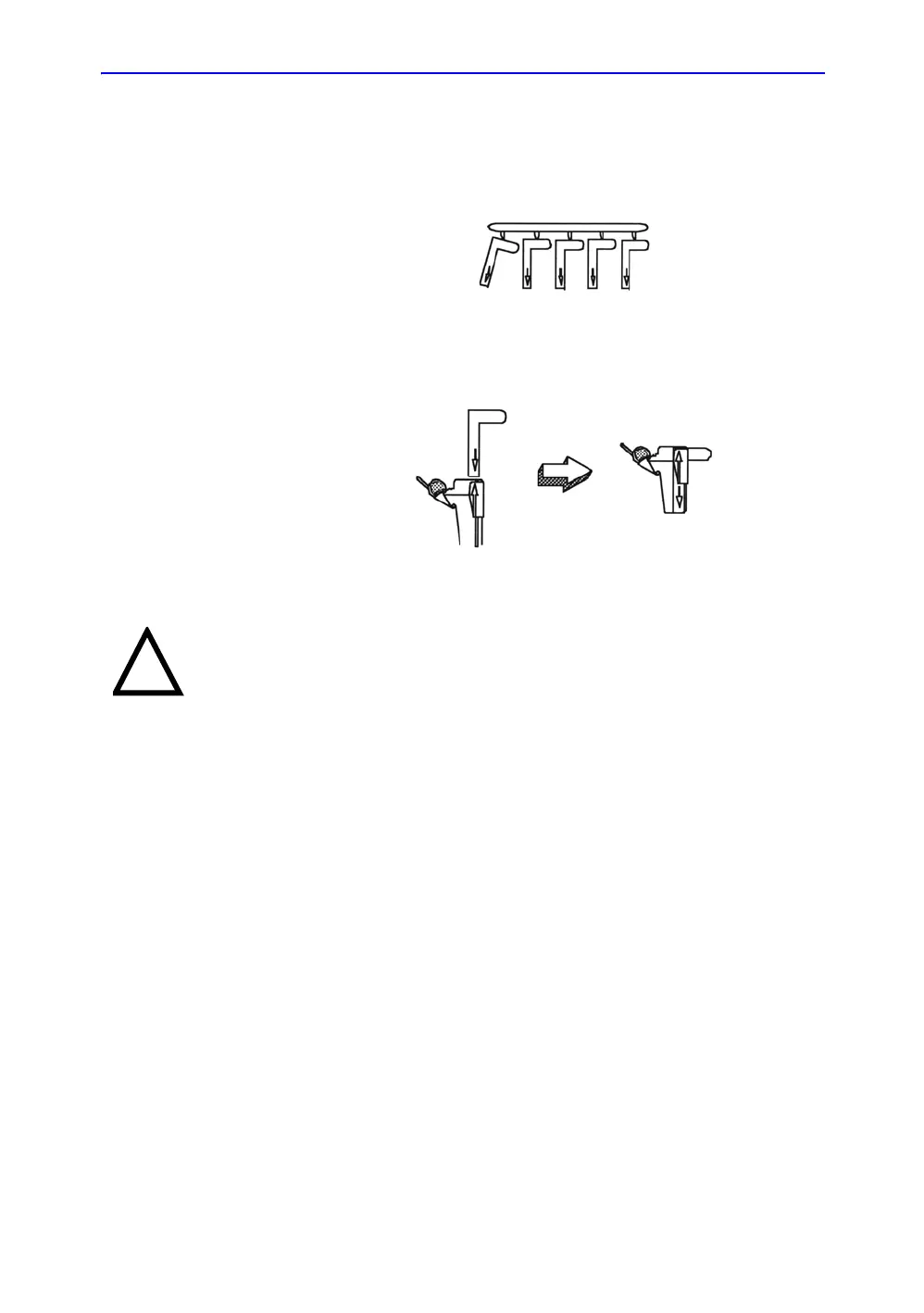

Figure 17-21. Needle Barrel Selection
Place the needle barrel into the needle clip with the desired
gauge facing the needle clip and snap into place.
Figure 17-22. Needle Barrel Installation
CAUTION
Ensure that all guide parts are seated properly prior to
perfoming a biopsy.
To Next Page
