Preparing for a Biopsy
LOGIQ 7 Online Help 17-37
Direction 2392536-100 Rev. 1
Multi-Angle Biopsy Guide Assembly (continued)
Place an adequate amount of coupling gel on the face of the
probe.
Place the proper sanitary sheath tightly over the probe and
biopsy bracket. Use the rubber bands supplied to hold the
sheath in place.

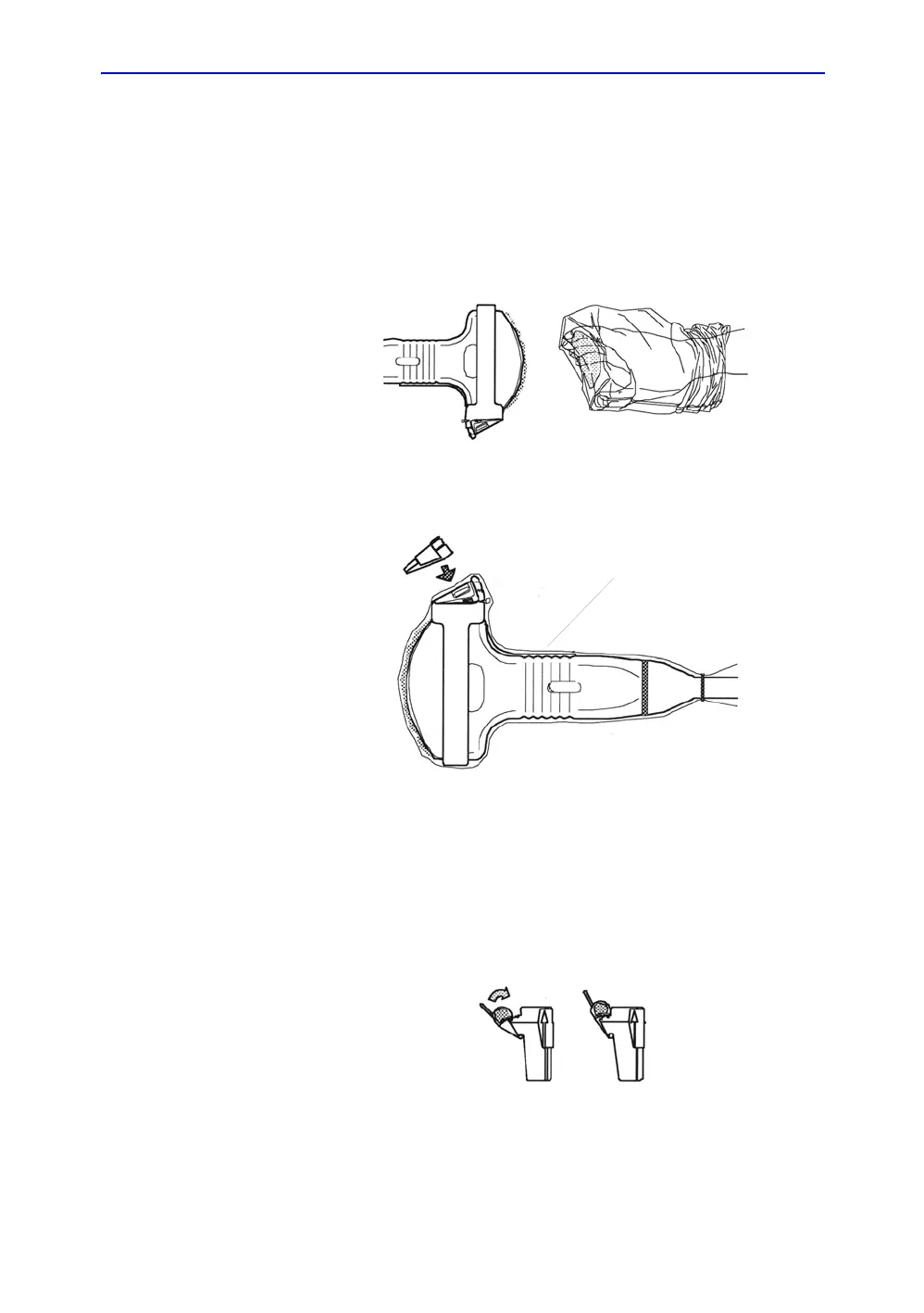

Figure 17-18. Applying Sanitary Sheath
Snap the needle clip onto the biopsy guide bracket.
Figure 17-19. Fixing the Needle Clip Attachment
1. Sheath
Push the locking mechanism towards the bracket to secure the
lock. Make sure the needle guide is firmly attached to the
bracket.
Figure 17-20. Locking the Needle Clip
1
1
