GE LOGIQ 7

Probes and Biopsy
17-36 LOGIQ 7 Online Help
Direction 2392536-100 Rev. 1
Multi-Angle Biopsy Guide Assembly (continued)
Pull up on the knob to freely move the needle guide attachment.
Align the knob with the selected position of the needle guide
attachment from MBX1, MBX2 and MBX3, to match the
guidezone display on the ultrasound system.

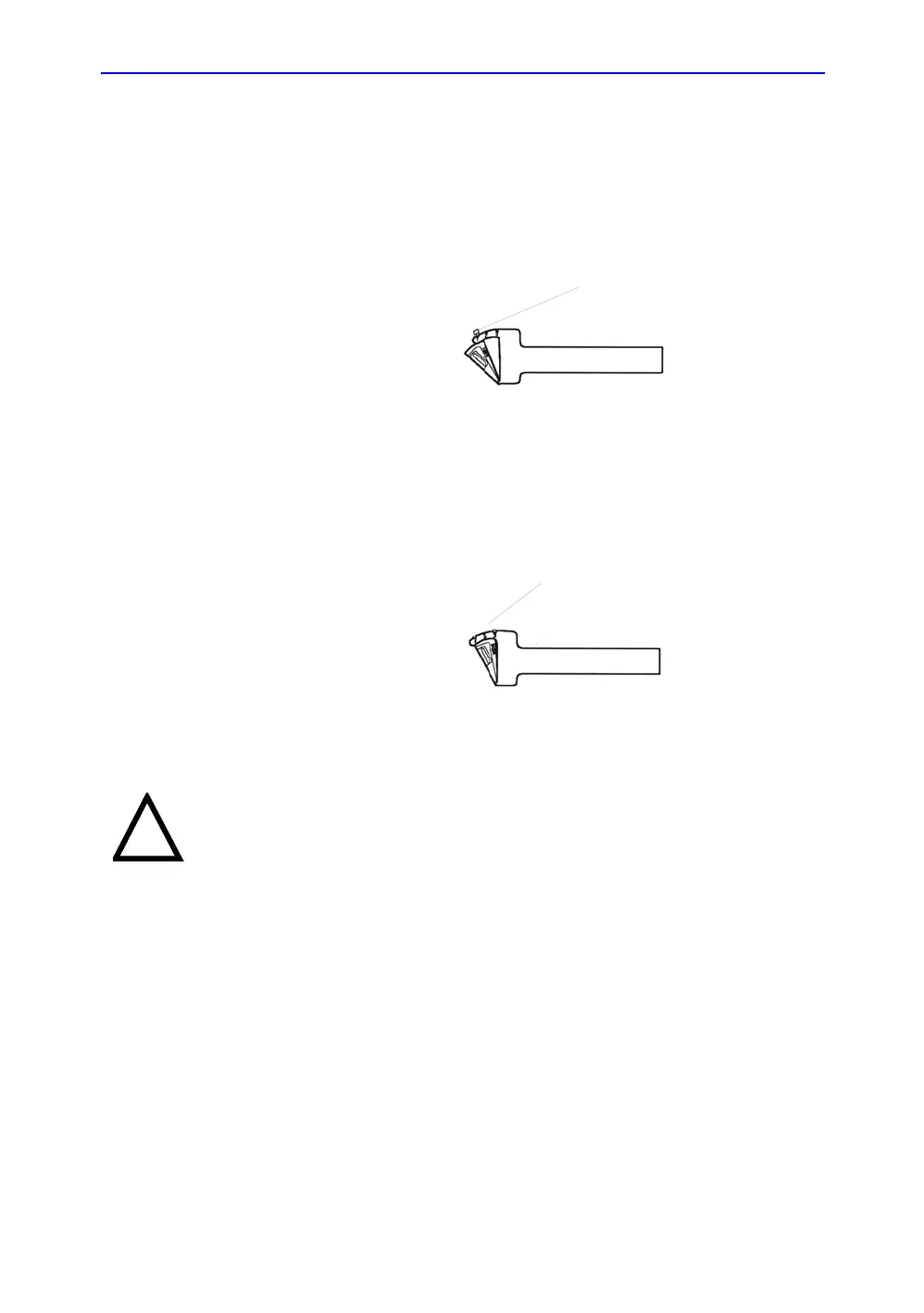

Figure 17-16. Select the angle position
1. Pull up
Push the knob down into the desired slot to secure the angle
position of the needle guide attachment.
Figure 17-17. Fix the angle position
1. Push
1
1
CAUTION
Hold the bracket in place on the probe when pushing the knob
to secure the angle position of the needle guide attachment.
Excessive force may cause the bracket to release from the
probe.
