Preparing for a Biopsy
LOGIQ 7 Online Help 17-35
Direction 2392536-100 Rev. 1
Multi-Angle Biopsy Guide Assembly
Scan the patient and identify the target for biopsy. Move the
probe to locate the target to the center of the image. Enable the
system biopsy guidezone and try guidezone angles A1 to A3 to
decide the best angle setting for needle path.
Identify the appropriate biopsy guide bracket by matching the
label on the bracket with the probe to be used.

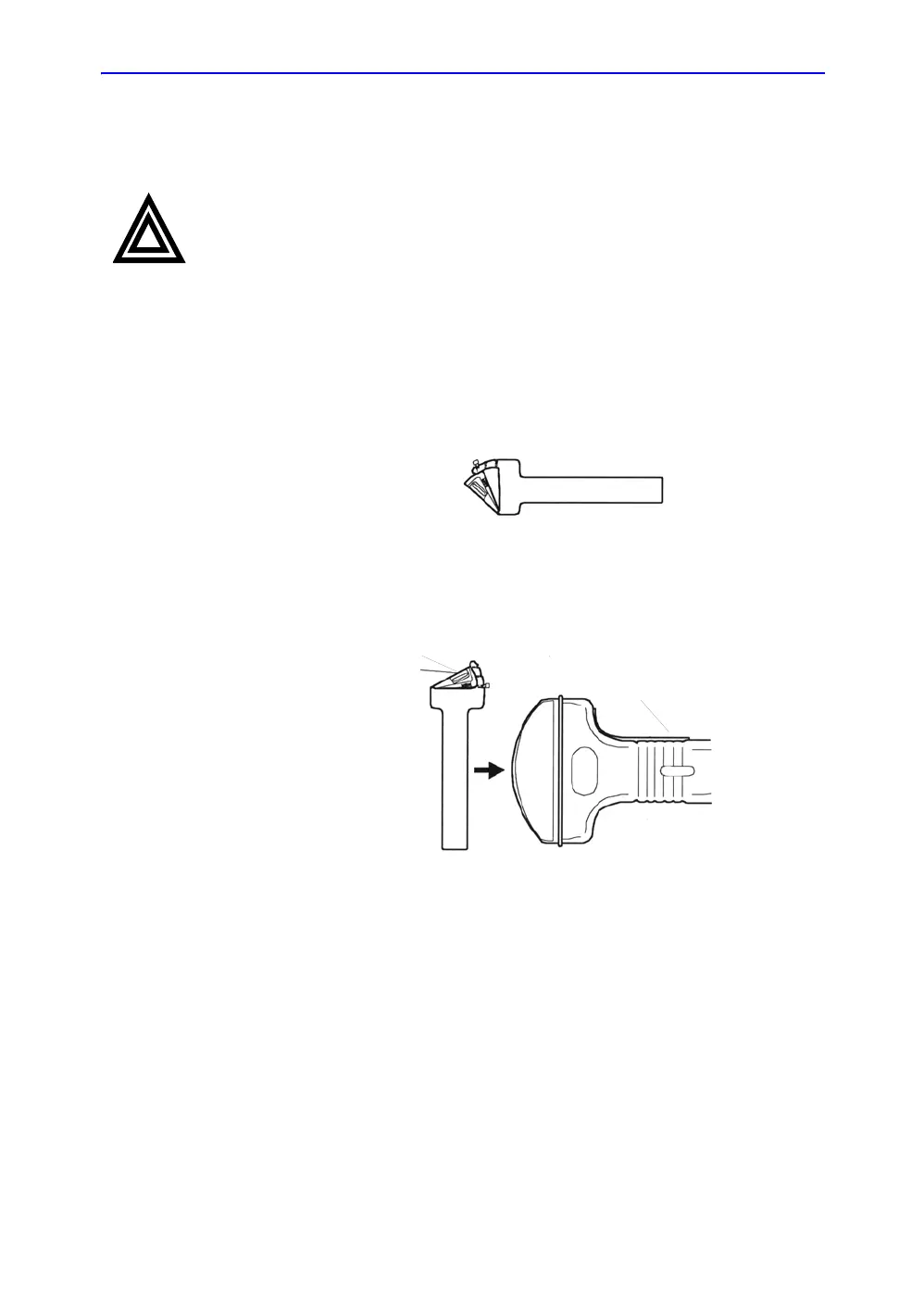

Figure 17-14. 3C Multi-Angle Biopsy Guide Bracket
Orient the bracket so that the needle clip attachment will be on
the same side as the probe orientation mark (ridge).
Figure 17-15. Probe/Bracket Alignment
1. Probe Orientation Mark
2. Bracket
Attach the biopsy bracket to the probe by sliding the bracket
over the end of the probe until it clicks or locks in place.
WARNING
DO NOT attempt to use the multi-angle biopsy bracket and
needle guide until the manufacturer's instructions, provided
with the biopsy bracket and needle guide in the kit, have been
read and thoroughly understood.
1
2
