GE LOGIQ 7

System Care and Maintenance
LOGIQ 7 Online Help 18-19
Direction 2392536-100 Rev. 1
Trackball (continued)
10. Install the Trackball retainer ring onto the inner retainer, then
rotate it clockwise until its notches are set in the horizontal
position.

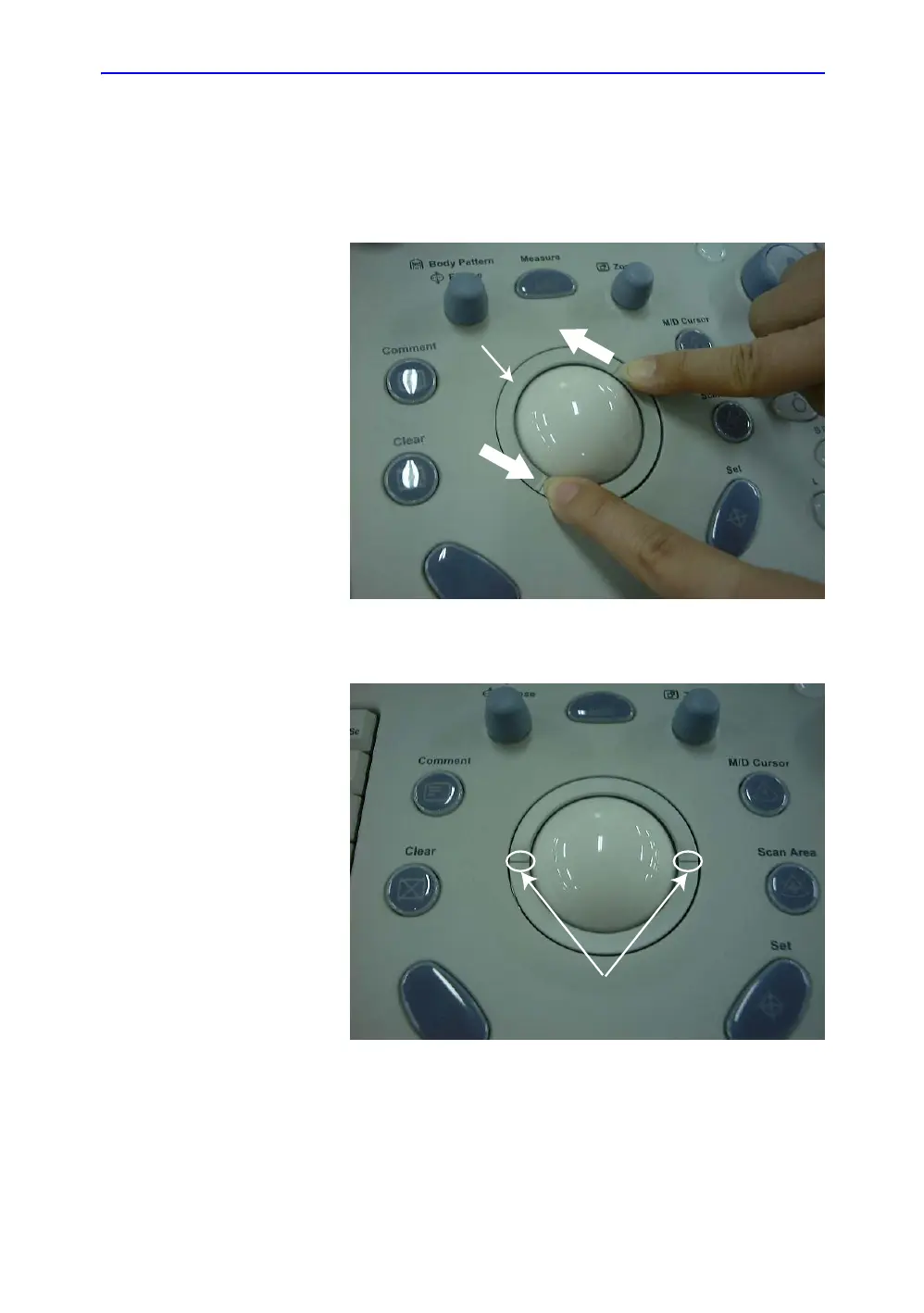

Figure 18-6. Rotating the Retainer Ring
a. Retainer Ring
Figure 18-7. Notches set in the horizontal position
a. Notches (Set Horizontally)
(a)
(a)
