Connecting the Pencil Probe (P2D and P6D)
When using a pencil probe, it is necessary to attach a probe
adapter to the system.
To attach a probe adapter and connect a pencil probe:
Turn the locking handle counterclockwise to unlock.
Align the connector of the adapter with the probe port and
carefully push into place.

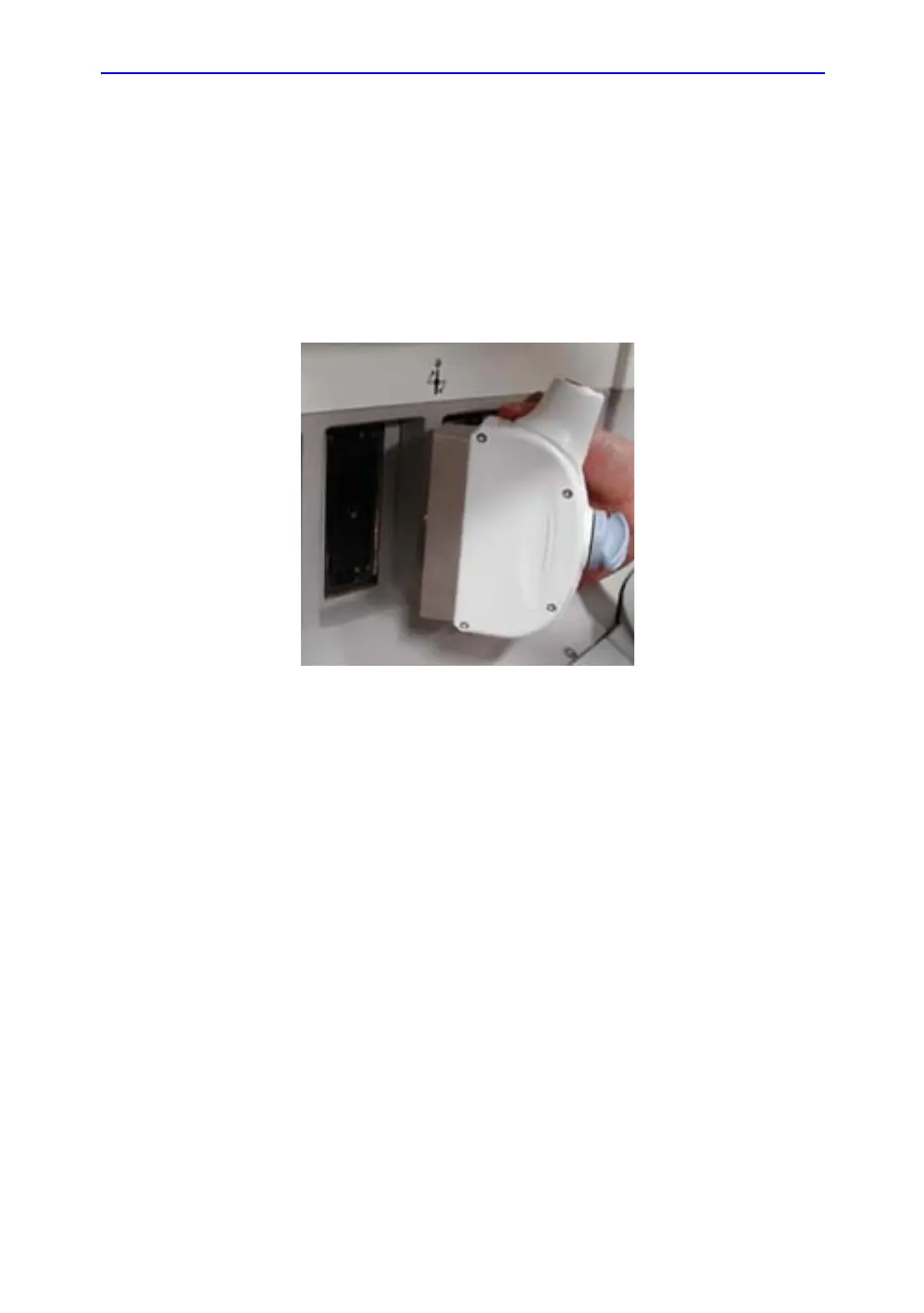

Figure 3-20. Align the connector with the probe port
Turn the connector locking handle clockwise to the full vertical
position to lock in place.
