Preparing the System for Use
3-40 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Connecting the Pencil Probe (P2D and P6D) (continued)
Insert the probe connector into the adapter until you hear the
locking click. Carefully position the probe cord so it is free to
move and is not resting on the floor.

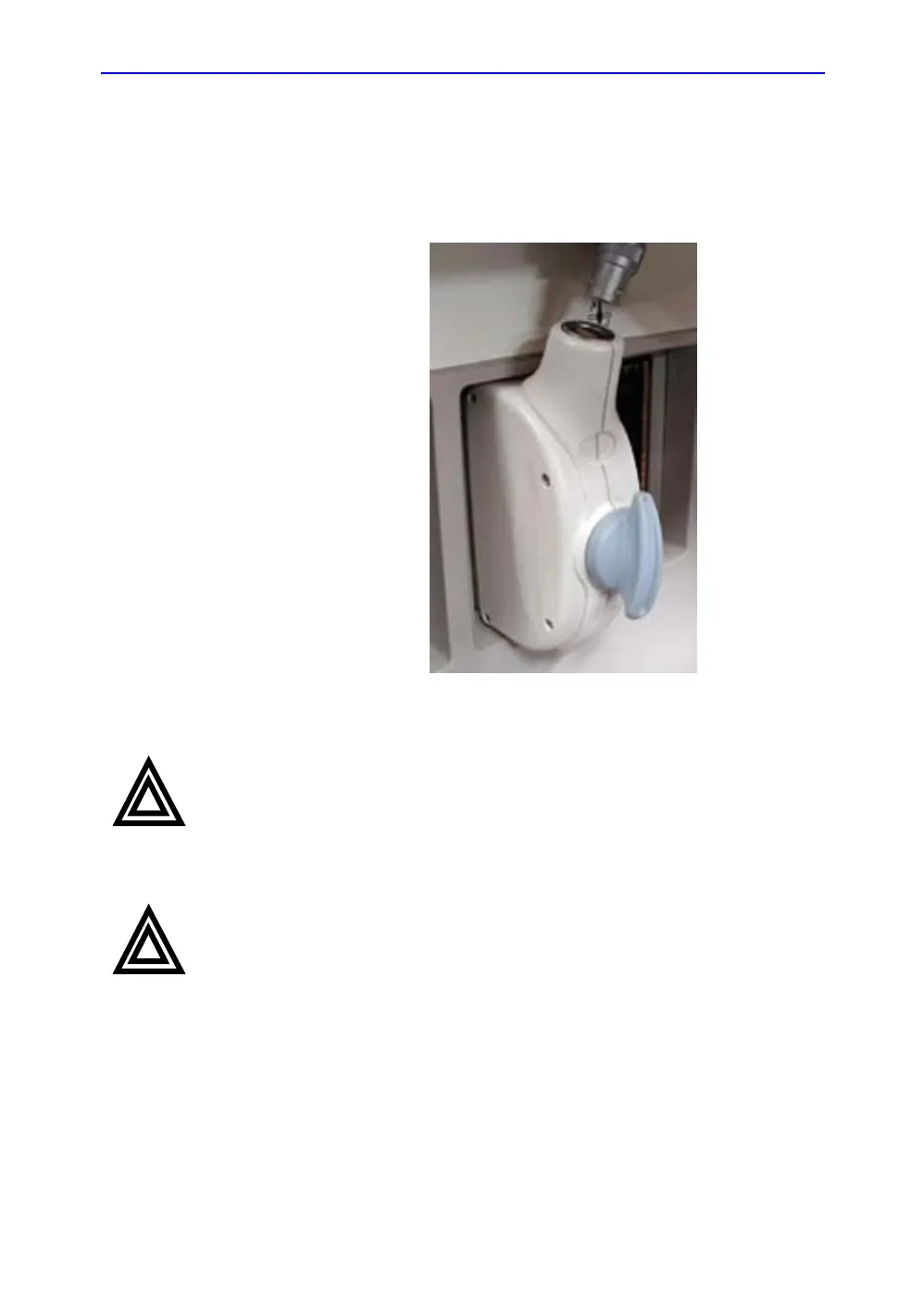

Figure 3-21. Insert the probe connector to the adapter
WARNING
When connecting the probe adapter to the system, first verify
the direction of the connector. The connector portion of the
adapter must be properly oriented to the system before locking
the probe adapter. The probe adapter should only be
connected when the connector portion of the adapter is
properly aligned mechanically with the system.
WARNING
Serious injury and equipment damage may result if the probe
adapter is improperly connected to the system by applying
excessive force. Carefully align the probe connector to the
system and push it firmly into place. Turn the locking handle
clockwise to secure the probe connector to the system.
