A.1 Replacement from WJ200

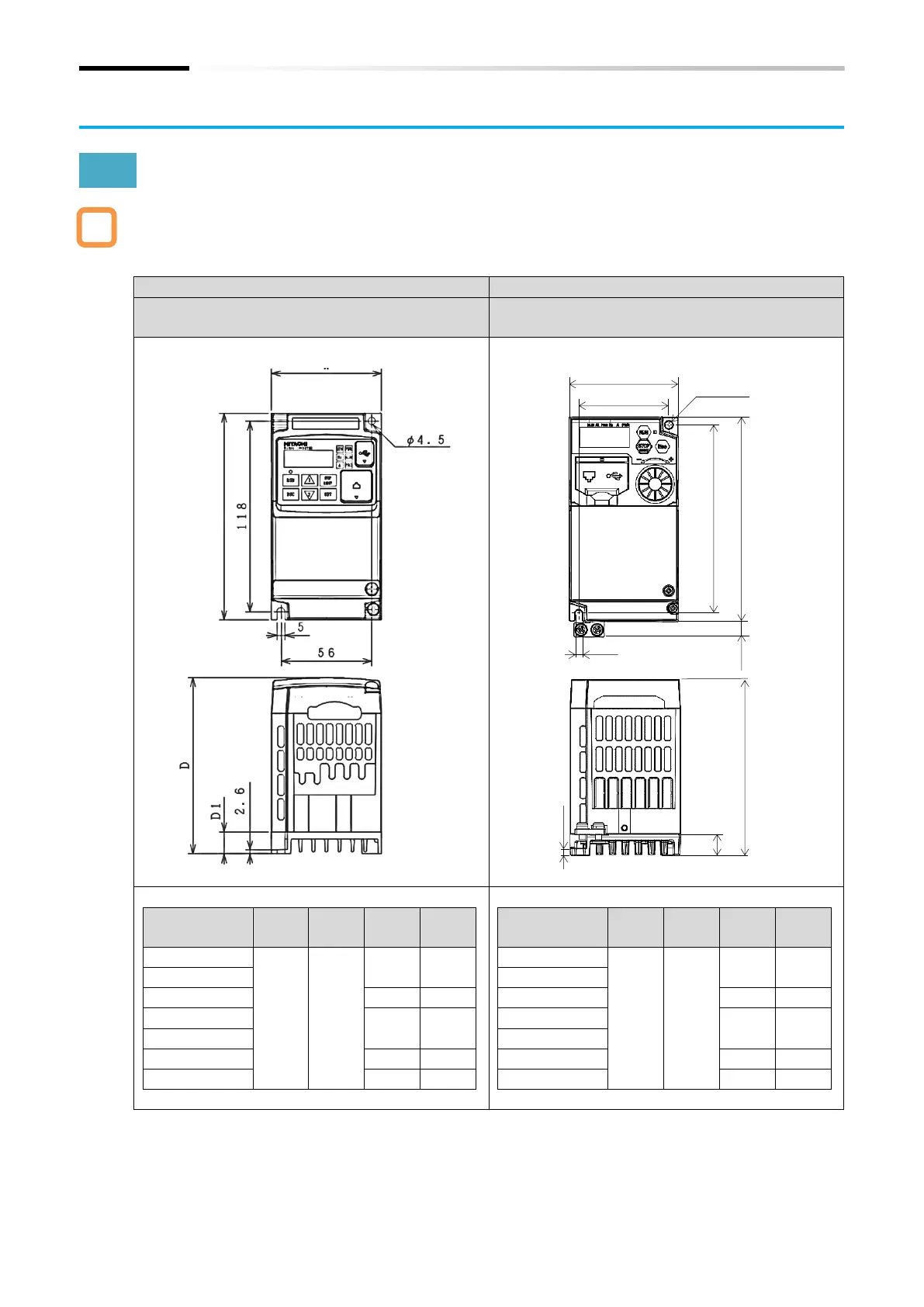

A.1.1 Comparison of External Dimensions and Mounting Dimensions
 The external dimensions and mounting dimensions of WJ200 Series and WJ-C1 are identical.
Refer to the figure below for differences in other dimensions. (The depth of C1-110LF/C1-
110HF/C1-150HF is 10 mm shorter.)
WJ200
WJ-C1
Single-phase 200 V 001SF/002SF/004SF
Three-phase 200 V 001LF/002LF/004LF/007LF
Single-phase 200 V 001SF/002SF/004SF
Three-phase 200 V 001LF/002LF/004LF/007LF
Model
W
(mm)
H
(mm)
D
(mm)
D1
(mm)
WJ200-001SF
68
128
109
13.5
WJ200-002SF
WJ200-004SF
122.5
27
WJ200-001LF
109
13.5
WJ200-002LF
WJ200-004LF
122.5
27
WJ200-007LF
145.5
50
Model
W
(mm)
H
(mm)
D
(mm)
D1
(mm)
C1-001SF
68
128
109
13.5
C1-002SF
C1-004SF
122.5
27
C1-001LF
109
13.5
C1-002LF
C1-004LF
122.5
27
C1-007LF
145.5
50
4.5
D1
D
56
68 (W)
118
128 (H)
4.5
φ4.5
(9.5)
A
128 (H)
68 (W)
