Drive Configuration D2 Series Servo Drive User Manual
5-6 HIWIN MIKROSYSTEM CORP.

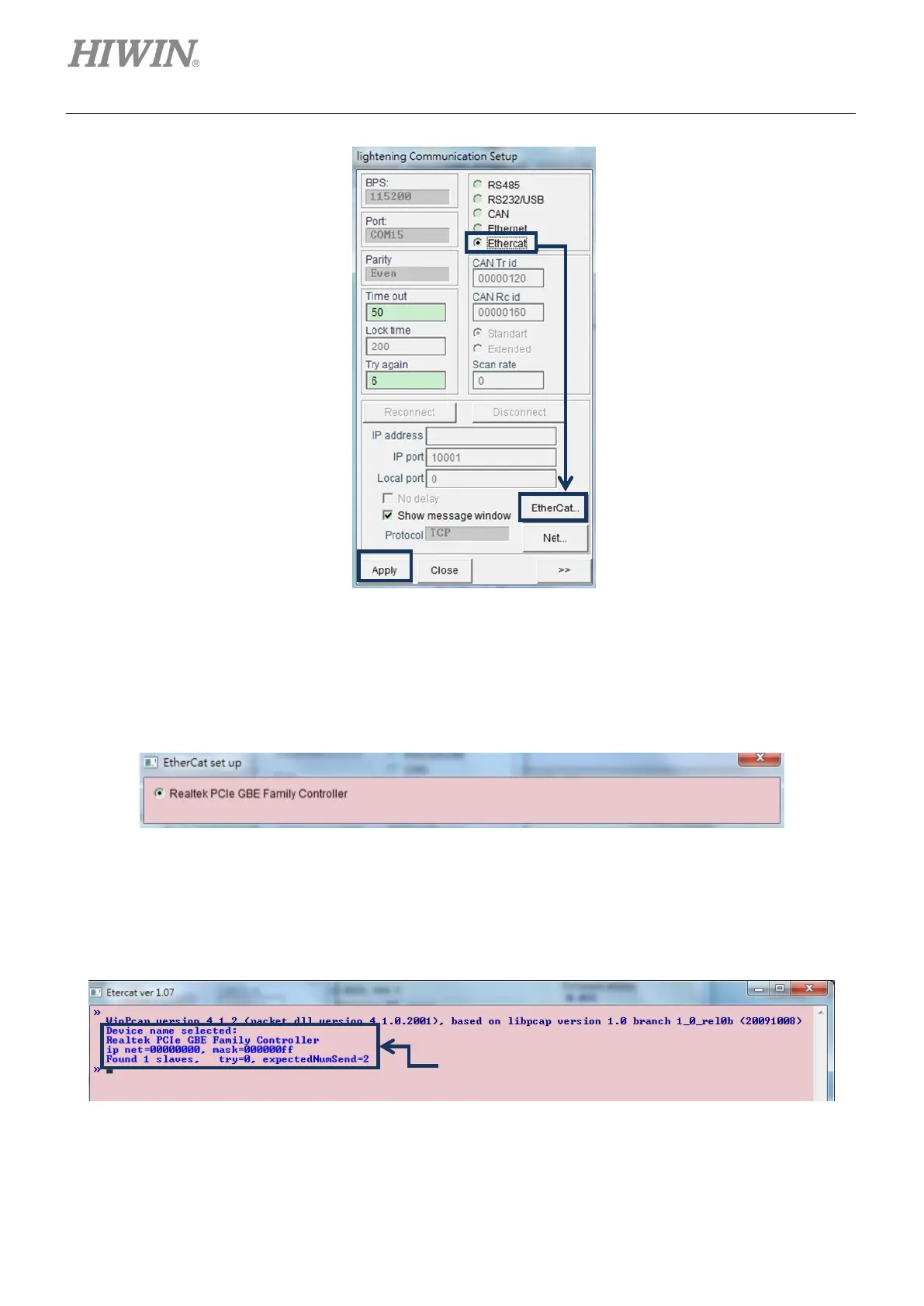

Figure5.1.2.3
The “EtherCat set up” window will appear to display all network cards in the computer, as shown in
figure 5.1.2.4. Select the network card connected to the drive. After that, close the “EtherCat set up”
window and click the “Apply” button in the “lightening Communication Setup” window.
Figure5.1.2.4
After the setting is completed, the window of figure 5.1.2.5 will appear. The number of connected axes
can be obtained from the information in the window. After going back to Lightening main window, the
connection is established and “Ethercat” is shown in the title, as given in figure 5.1.2.6.
Figure5.1.2.5
