D2 Series Servo Drive User Manual Drive Tuning
HIWIN MIKROSYSTEM CORP. 6-13
MD07UE01-2005

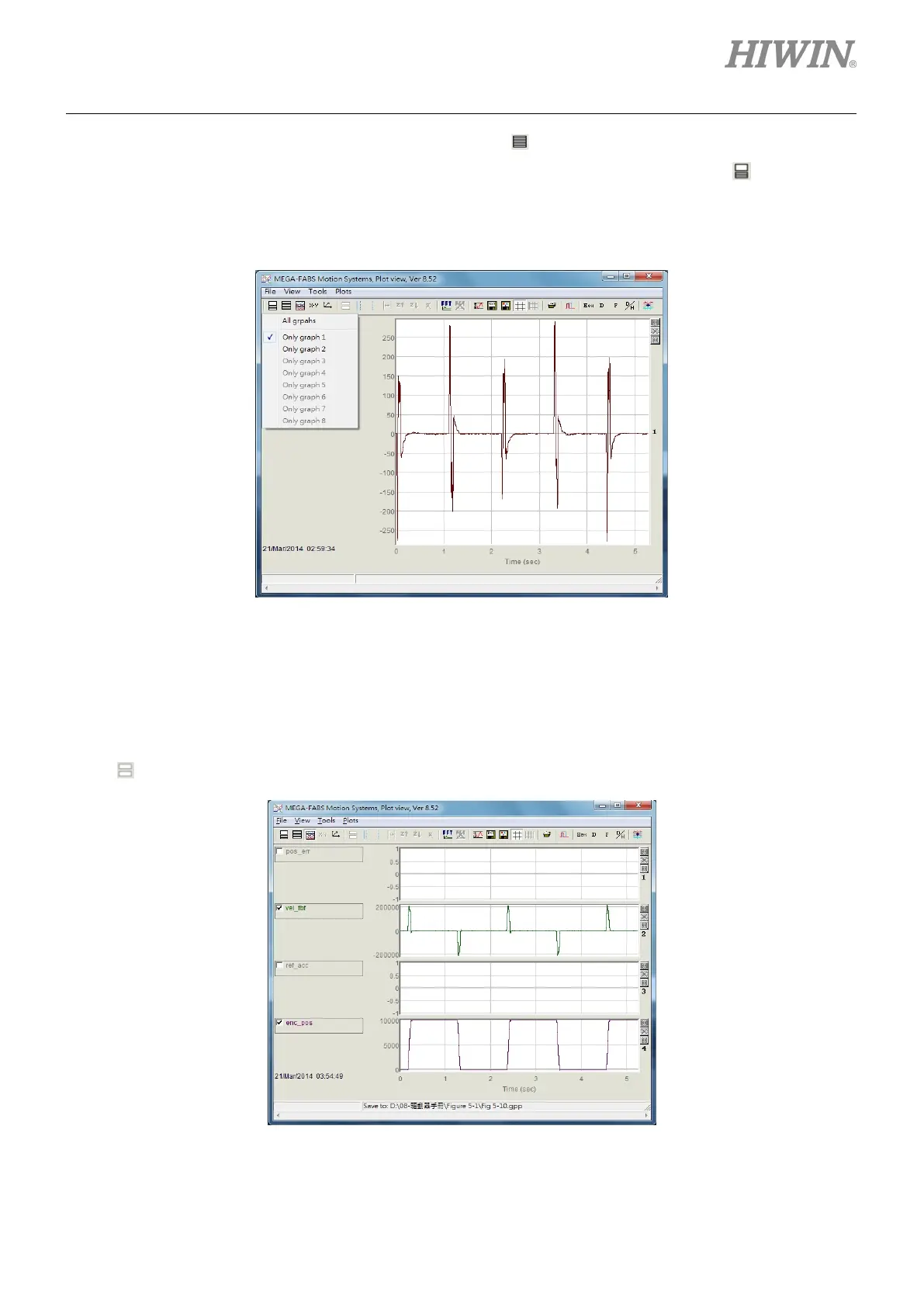

To observe the graph of two physical quantities, click and then select “Only graph 2” to change
the number of channels into two. To observe the graph of one physical value, click
and then
select “Only graph 1” to change the number of channels into one. As shown in figure 6.5.1.1, it gives
an example that “Scope” or “Data collection” only collects two physical quantities.
Figure6.5.1.1
(2) Show or hide physical quantities
If the physical quantity is unchecked, the graphic display area will hide the graph of this physical
quantity. As shown in figure 6.5.1.2, it is the example of two physical quantities being unchecked. To
uncheck all physical quantities, click the related icon on the main toolbar area as follows.
-
: Uncheck all physical quantities (or click the “Delete” button).
Figure6.5.1.2
