LCD Operation D2 Series Servo Drive User Manual
7-12 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

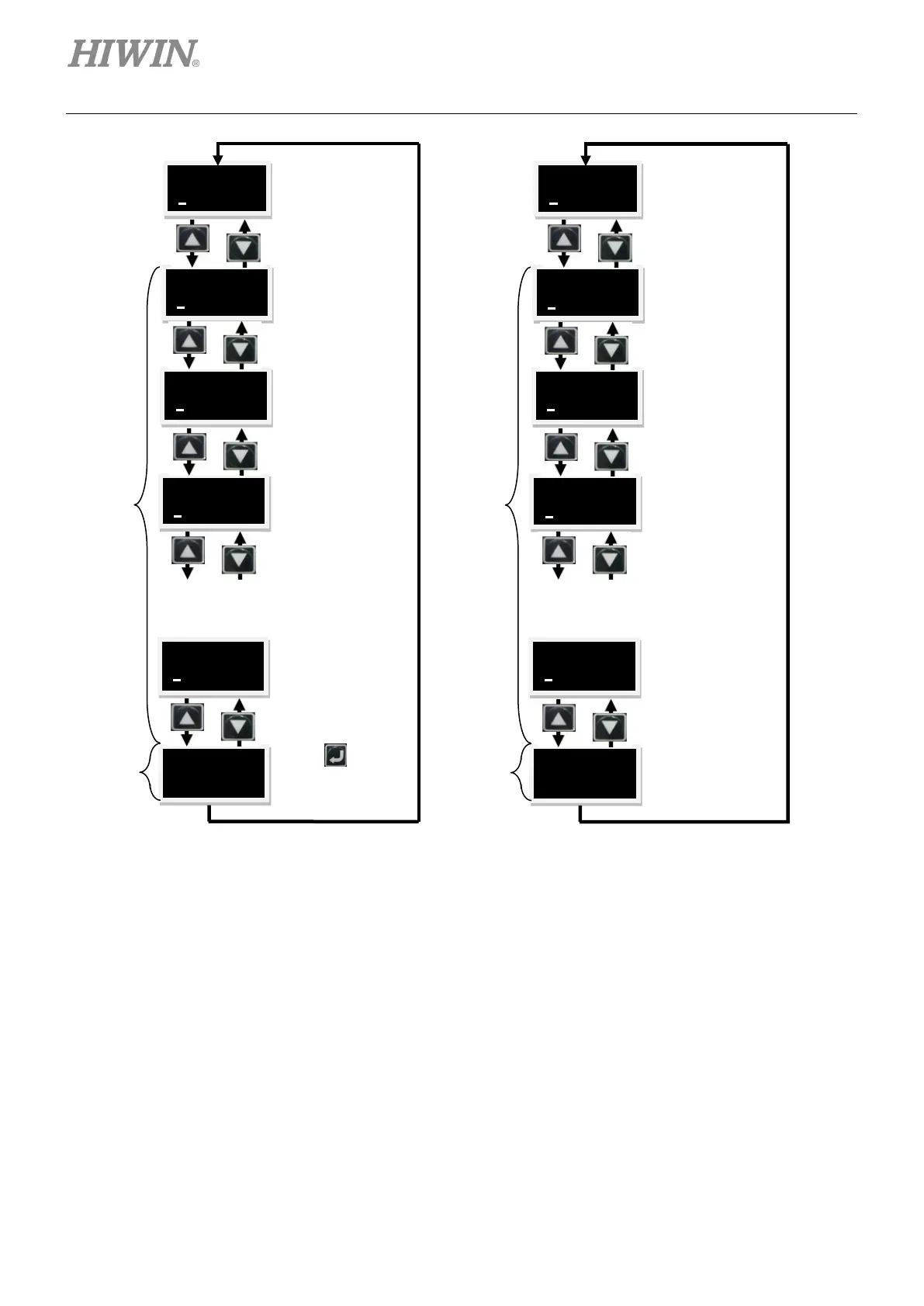

Figure7.5.1 Operation flow chart for change parameters page
(a) LCD abbreviated display symbol
(b) LCD numbered display symbol
Deceleration
setting.
Speed setting.
3:SAVEFL
NO
3:No.000
2000
3:No.001
2000
3:No.003
500
3:No.340
0
3: +++
0
•
•
•
Common parameter zone
Advanced parameter zone
Note:
Static cursor (flashing underscore). The parameter can be edited.
Save parameters
in the drive’s RAM
to flash.
Acceleration
setting.
ZeroTune
load level.
Press to enter
the advanced
parameter zone.
3 SAVEFL
NO
3 000
2000
Static
cursor
3 001
2000
3 003
500
3 340
0
3 +++
0
•
•
•
Common parameter zone
Advanced parameter zone
