D2 Series Servo Drive User Manual LCD Operation
HIWIN MIKROSYSTEM CORP. 7-37
MD07UE01-2005

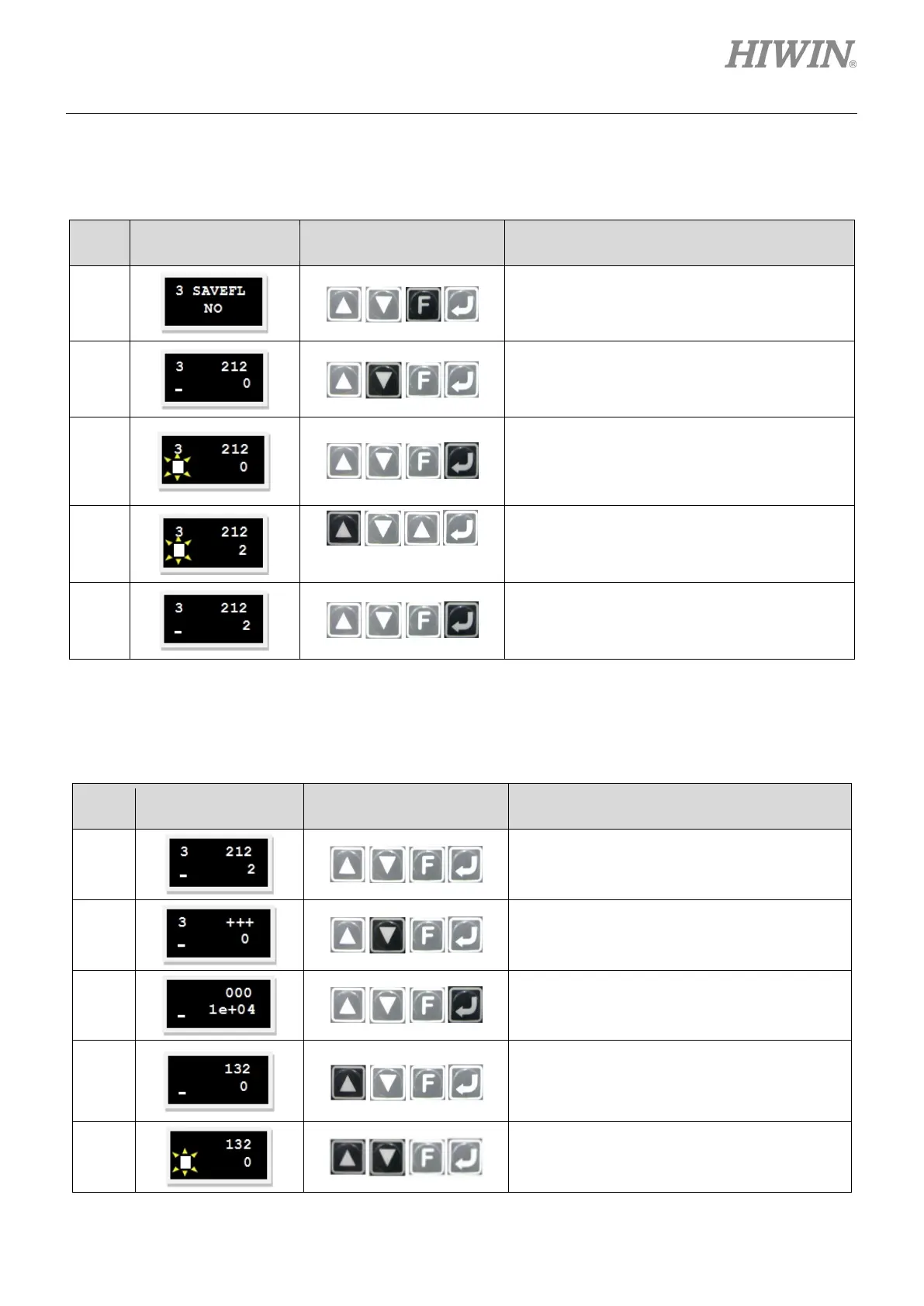

(1) Mode selection
Use following steps to select the velocity mode via LCD.
Table7.7.2.1
Step
LCD Display After
Operation
Used Keys Operation
1
Press the F key to change the LCD screen to the
parameter change page.
2
Press and hold the Down key to go to LCD No.
212 page, i.e. the setting page for operation
mode.
3
Press the Enter key to enter the edit mode.
4
Press the Up key twice to set this parameter to 2,
i.e. the velocity mode.
5
Press the Enter key to complete the setting.
(2) Input command format setting
Use following steps to set the input command format via LCD.
Table7.7.2.2
Step
LCD Display After
Operation
Used Keys Operation
1
Continue the last setting screen of operation
mode.
2
Press and hold the Down key to go to the “+++”
page.
3
Press the Enter key to enter the advanced
parameter zone.
4
Press and hold the Up key to go to LCD No. 132
page (refer to note 1), i.e. the
setting page of
input command format for the
velocity and
torque modes.
5
Press the Up key or Down key to set this
parameter to the required value. (Note. This
example is the analog command input.)
