Hiwin D2 Series User Manual

LCD Operation D2 Series Servo Drive User Manual
7-38 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

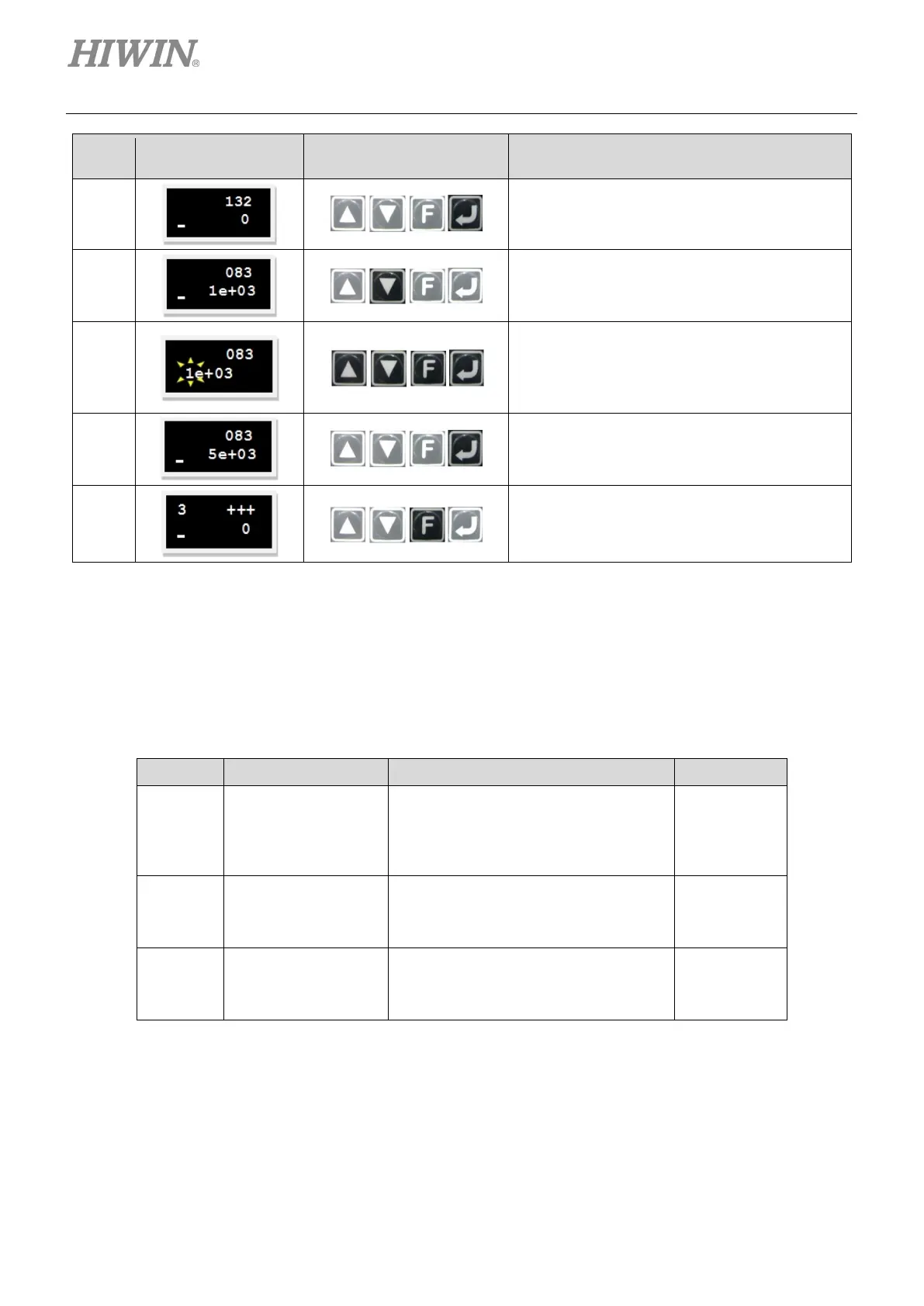

Step
LCD Display After
Operation
Used Keys Operation
6
Press the Enter key to complete the “input
command format” setting.
7
Press and hold the Down key to go to LCD No.
083 page (refer to note 1), i.e. the setting page
of velocity command scale.
8
Press the Enter key first and set this parameter
to the required value. (
To invert the voltage or
PWM command, simply add a minus sign to
“velocity command scale”.)
9
Press the Enter key to complete the “velocity
command scale” setting.
10
Press and hold the F key to go back to the “+++”
page, i.e. the common parameter zone.
To set the dead band for velocity command (LCD No. 084), the setting procedure is the same as that
for setting velocity command scale (LCD No. 083).
Note:
The input command format can be set via following parameters.
Table7.7.2.3
LCD No. Parameter Definition Initial value
132
X_cmd_pwm_mode
Input command format for the velocity
and torque modes
0: Analog
1: PWM 50%
2: PWM 100%
0
083
X_cmd_ext_v_sc
Velocity command scale; the speed
corresponds to 1V, or the maximum
speed corresponds to Full PWM.
(unit: rpm = 1 V or rpm = Full PWM)
60
084
X_cmd_ext_v_dz
Dead band of velocity command. The
speed command is 0 when the input
voltage is less than the set value.
(unit: volt)
0
