Protection Function D2 Series Servo Drive User Manual
8-14 HIWIN MIKROSYSTEM CORP.

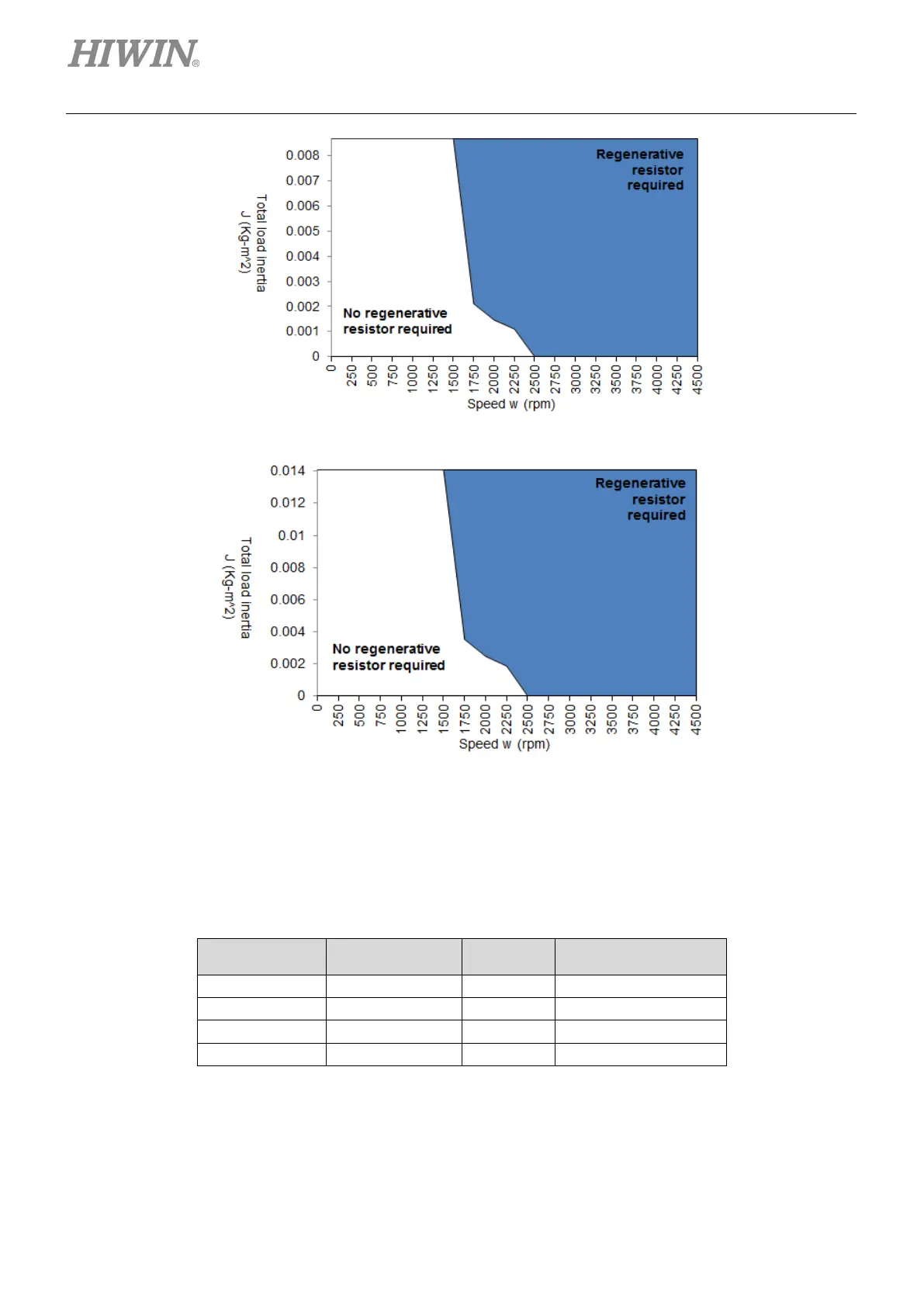

Figure8.6.4 Motor regenerative curve of FRMM1K2XX
Figure8.6.5 Motor regenerative curve of FRMM2K2XX
The regenerative resistor model of HIWIN standard product is given in table 8.6.1. Users can use them in
series or in parallel according to the requirement. The appearance and size are given in table 8.6.2 and
figure 8.6.6.
Table8.6.1
Regenerative
Resistor Model
HIWIN Part No.
