D2 Series Servo Drive User Manual Protection Function
HIWIN MIKROSYSTEM CORP. 8-15
MD07UE01-2005

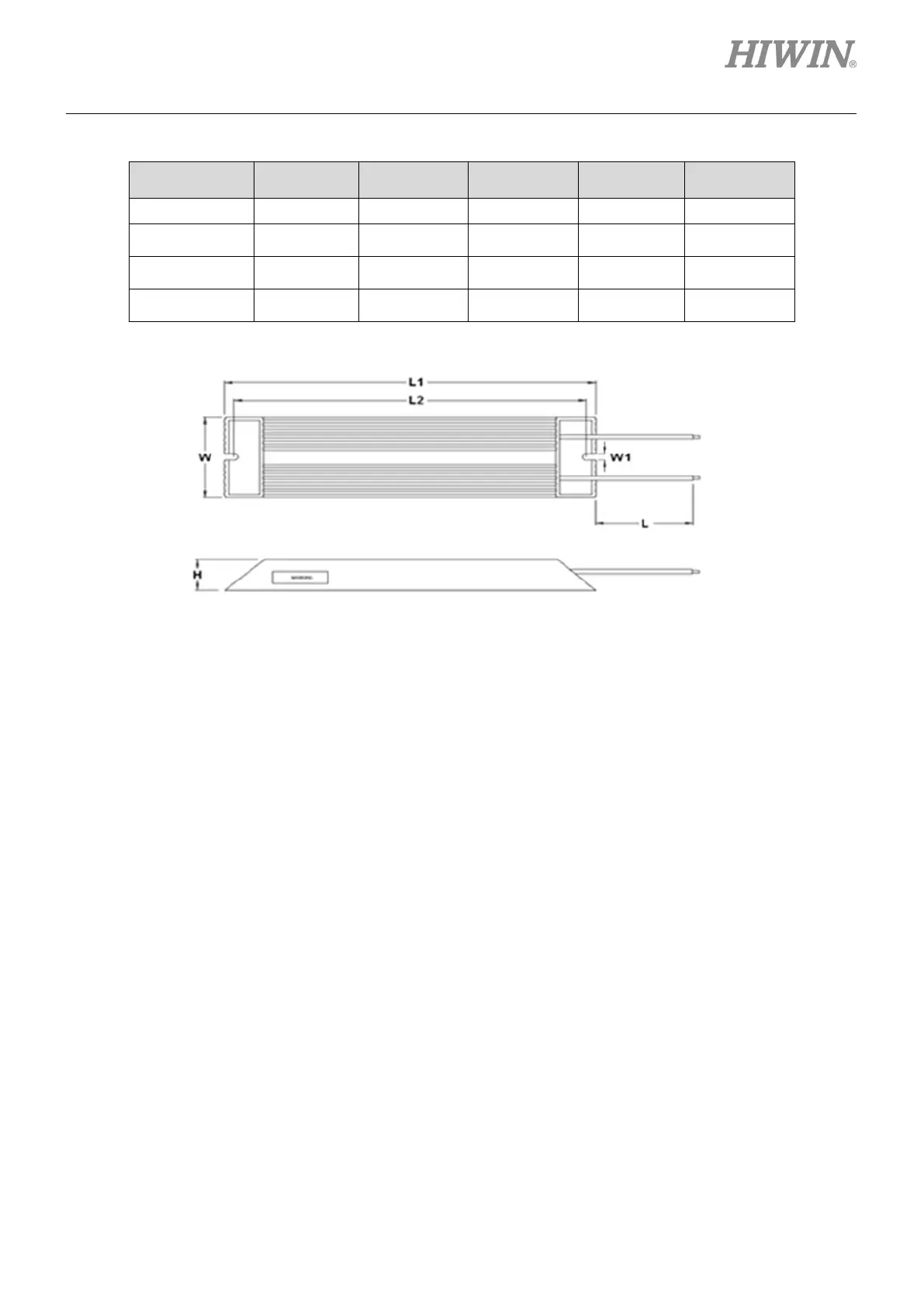

Table8.6.2
Regenerative
Resistor Model
L1 L2 W W1 H
RG1 165 ± 2 mm 150 ± 2 mm 40 ± 0.5 mm 5.3 ± 0.5 mm 20 ± 0.5 mm
RG2 215 ± 2 mm 200 ± 2 mm 60 ± 1 mm 5.3 ± 1 mm 30 ± 1 mm
RG3 190 ± 2 mm 175 ± 2 mm 40 ± 1 mm 5.2 ± 1 mm 20 ± 1 mm
RG4 390 ± 2 mm 360 ± 2 mm 60 ± 1 mm 9 ± 1 mm 28 ± 1mm
Figure8.6.6
Line length L: 500mm
