IBM SAN Volume Controller - Locating the SAN Volume Controller 2145-8 A4; Locating the SAN Volume Controller 2145-8 G4

v SAN Volume Controller 2145-8G4: There are two versions of this node.
– The original version (Rev 1) uses eight 1 GB memory modules in slots 1 through 8, which are
shown in Figure 97.
– The second version of this node (Rev 2) uses four 2 GB memory modules in slots 1, 3, 5, and
7.

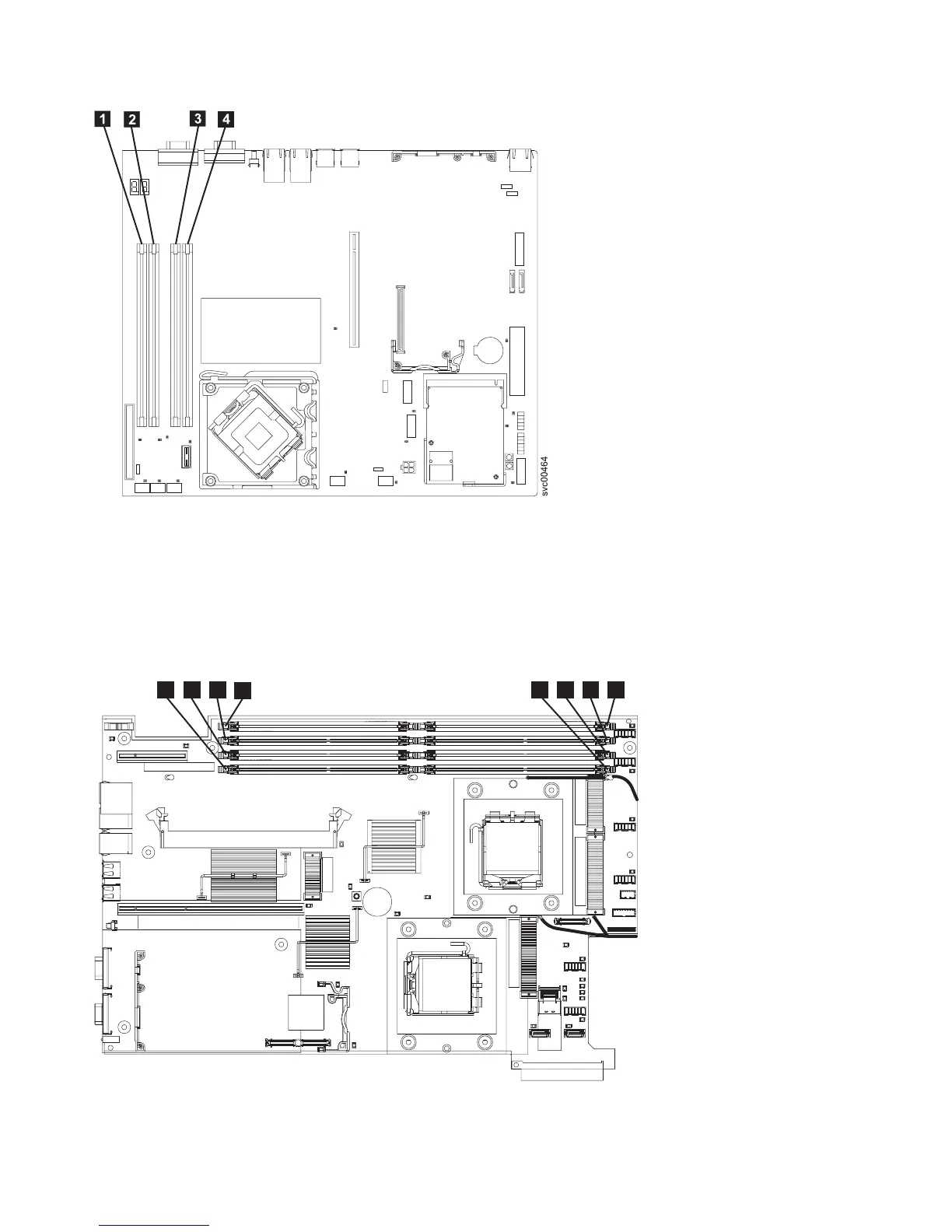

Figure 96. Locating the SAN Volume Controller 2145-8A4 memory modules
1
5
6
7
8
svc00271
2 3 4
Figure 97. Locating the SAN Volume Controller 2145-8G4 memory modules
