7. To free the swing end of the support arm from the backside of the slide rail, push the blue latch on

the cable-support-arm stop bracket on the right rail to open the cable-management arm, pivoting the

arm on the left rail, as shown by 1 in Figure 13, and then slide the bracket 2 from the slide rail.

8. Remove the L-shaped cable-management stop bracket on the unattached end of the support arm. Turn

the bracket, as shown by 1 in Figure 14 on page 25 to free it from the support arm. Then lift the

cable-management stop bracket 2 from the support arm.

svc_bb1ka041

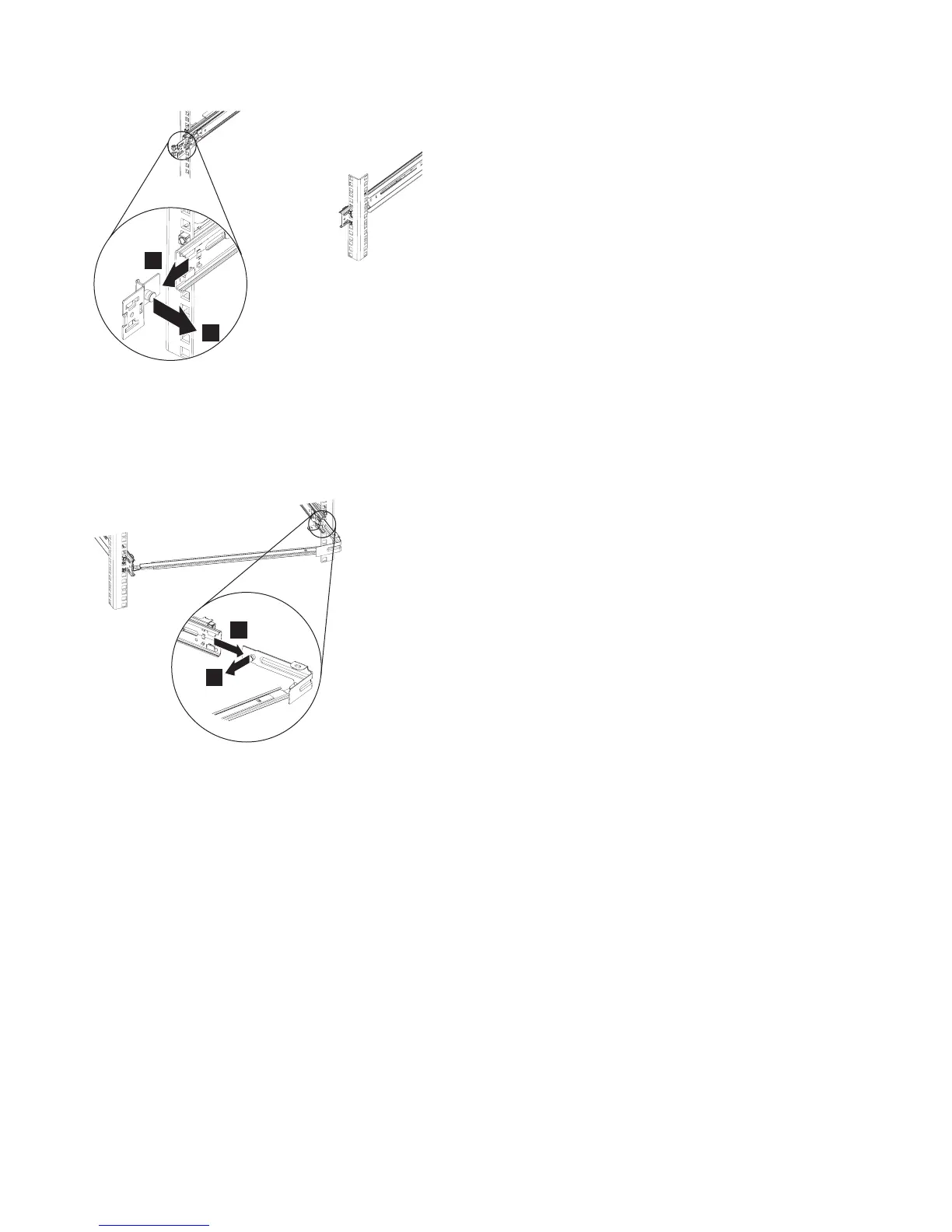

Figure 12. Removing the SAN Volume Controller 2145-CF8 cable-management arm mounting bracket

svc_bb1ka036

Figure 13. Freeing the swing end of the SAN Volume Controller 2145-CF8 support arm

24 IBM SAN Volume Controller Hardware Maintenance Guide
